Blasthole

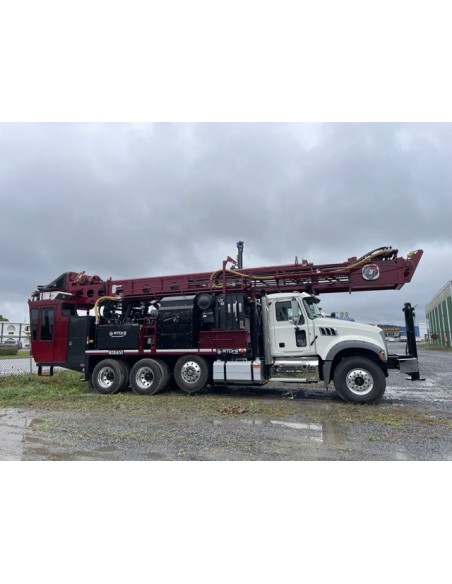

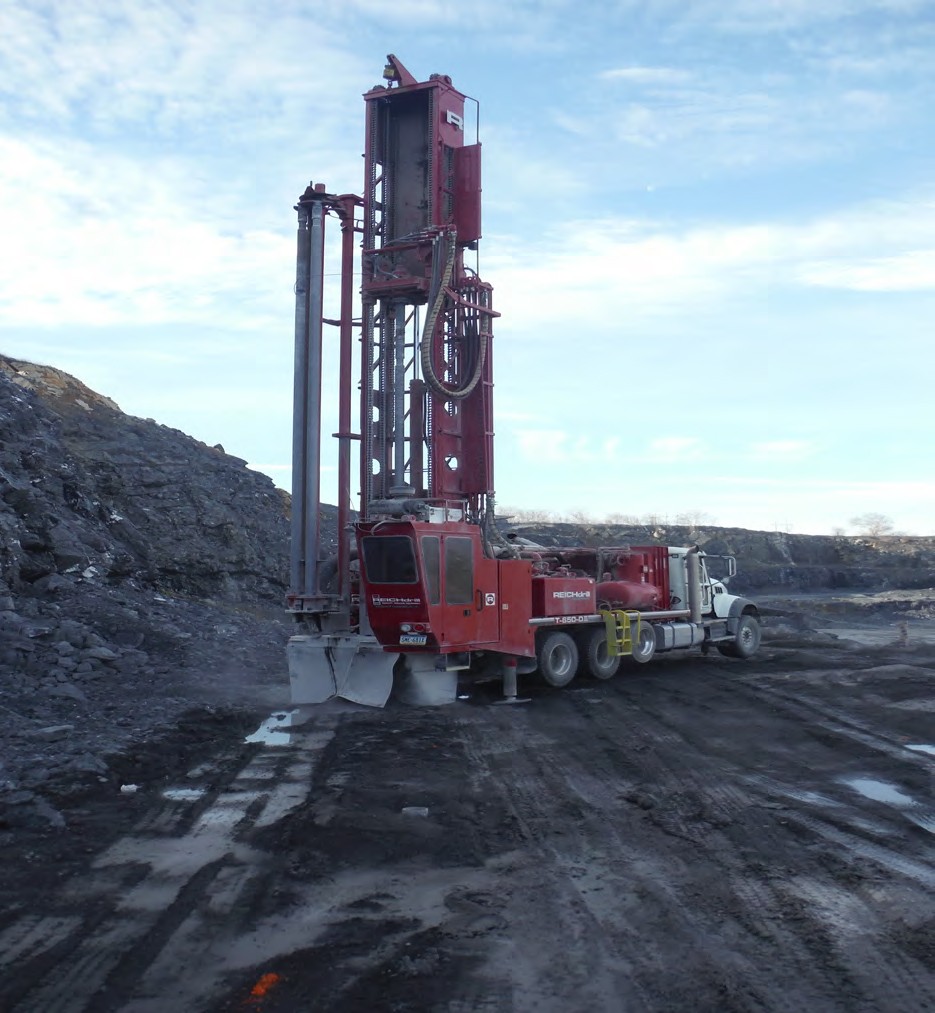

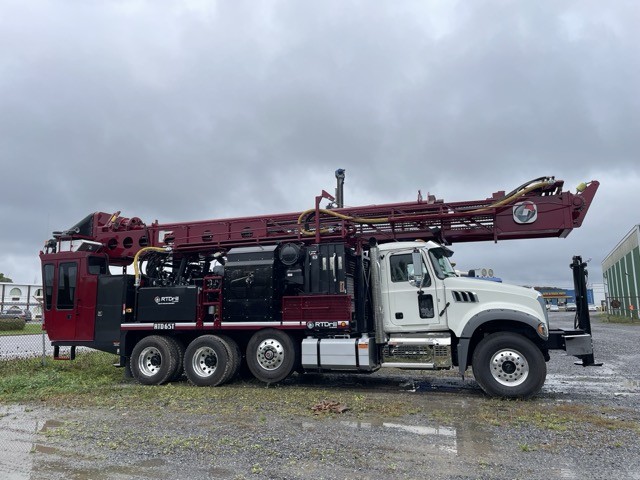

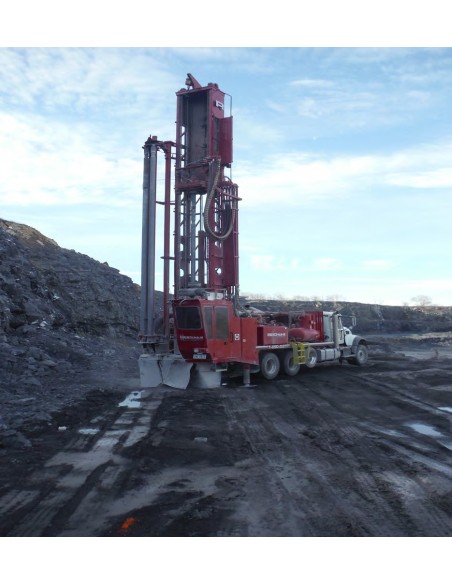

Manufactured in the USA by Reichdrill, the RTDrill RTD65 T is a high-mobility truck-mounted blasthole drill rig engineered for multi-site quarrying and open-pit mining. Powered by a heavy-duty 580 hp (433 kW) Caterpillar C15 engine and an onboard compressor delivering 1,070 CFM (30.3 m³/min), it drills hole diameters from 5 to 6 ¾ in (127 to 172 mm) up to 200 ft (61 m) deep. Combining rapid highway transit between benches with heavy structural steel drilling durability, the RTD65 T delivers outstanding drilling versatility and lower operational transport costs.

Technical specifications
  1. Engine type : Caterpillar C15
  2. Compressor model : Reichdrill
  3. Recommended hole size : 5 - 6 3/4 in127 - 171,1 mm
  4. Dimensions : 39,4 x 8,3 x 41,2 ft 12 x 2,52 x 12,56 m
  5. Rotary head type : Top head
Get your spare parts

Technical specifications

Dimensions and weight
Length 39,4 ft 12 m
Width 8,3 ft 2,52 m
Height 41,2 ft 12,56 m
Weight 60,000 lbs 27 240 m
Engine and compressor
Engine type Caterpillar C15
Power 580 hp 433 kW
Compressor model Reichdrill
Air volume 1,070 cfm 30,3 m3/min
Speed 1,800 rpm
Fuel tank capacity 175 US gal662 L
Drilling performance
Recommended hole size 5 - 6 3/4 in127 - 171,1 mm
Carrousel capacity 4+1 (7+1 opt.)
Maximum drilling depth 207 ft 61 m
Rotary head type Top head
Maximum rotation speed 141 rpm
Torque 57,300 lb-in6 474 Nm
Recommended drill pipe length 25 ft7,6 m
