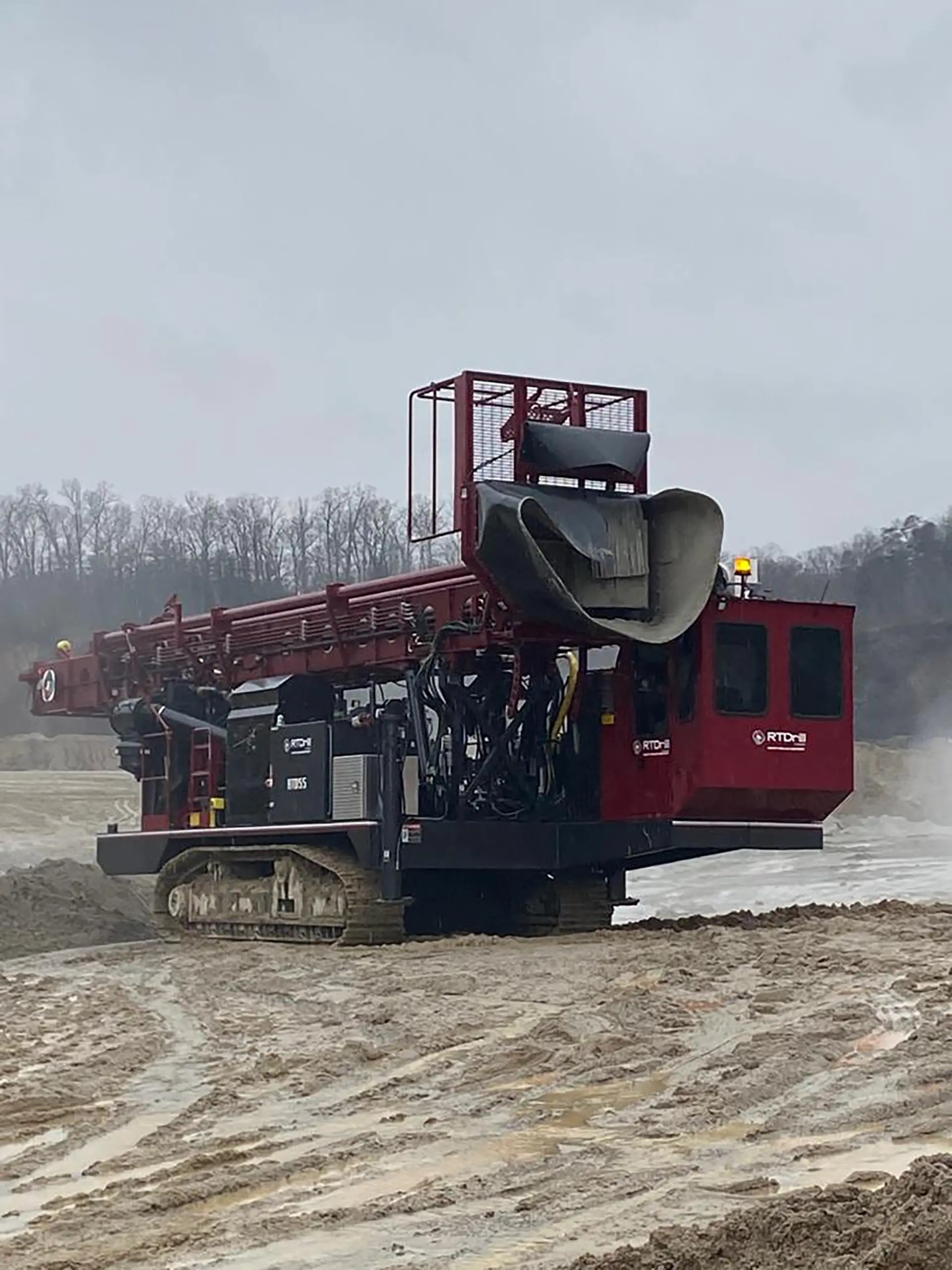

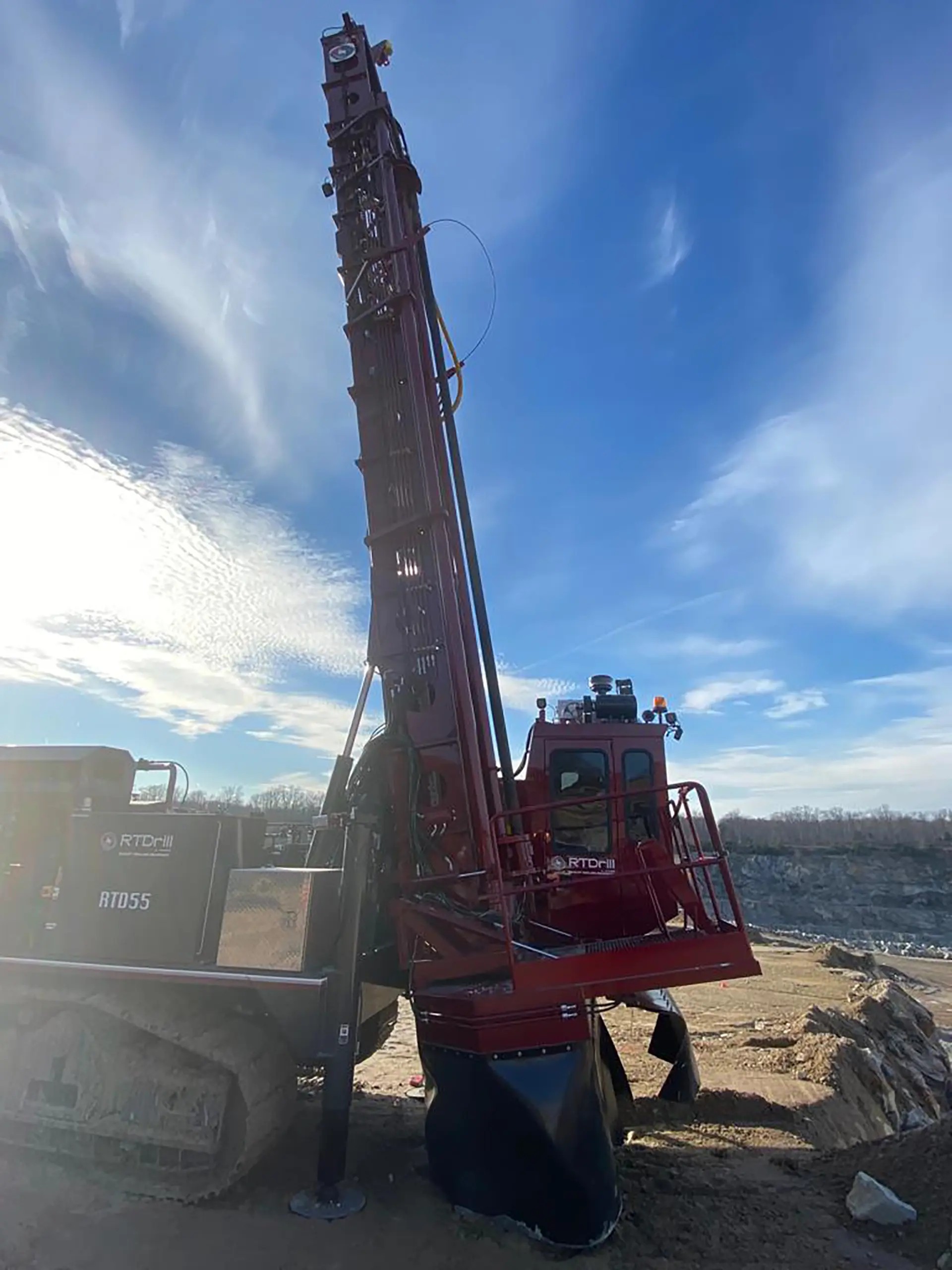

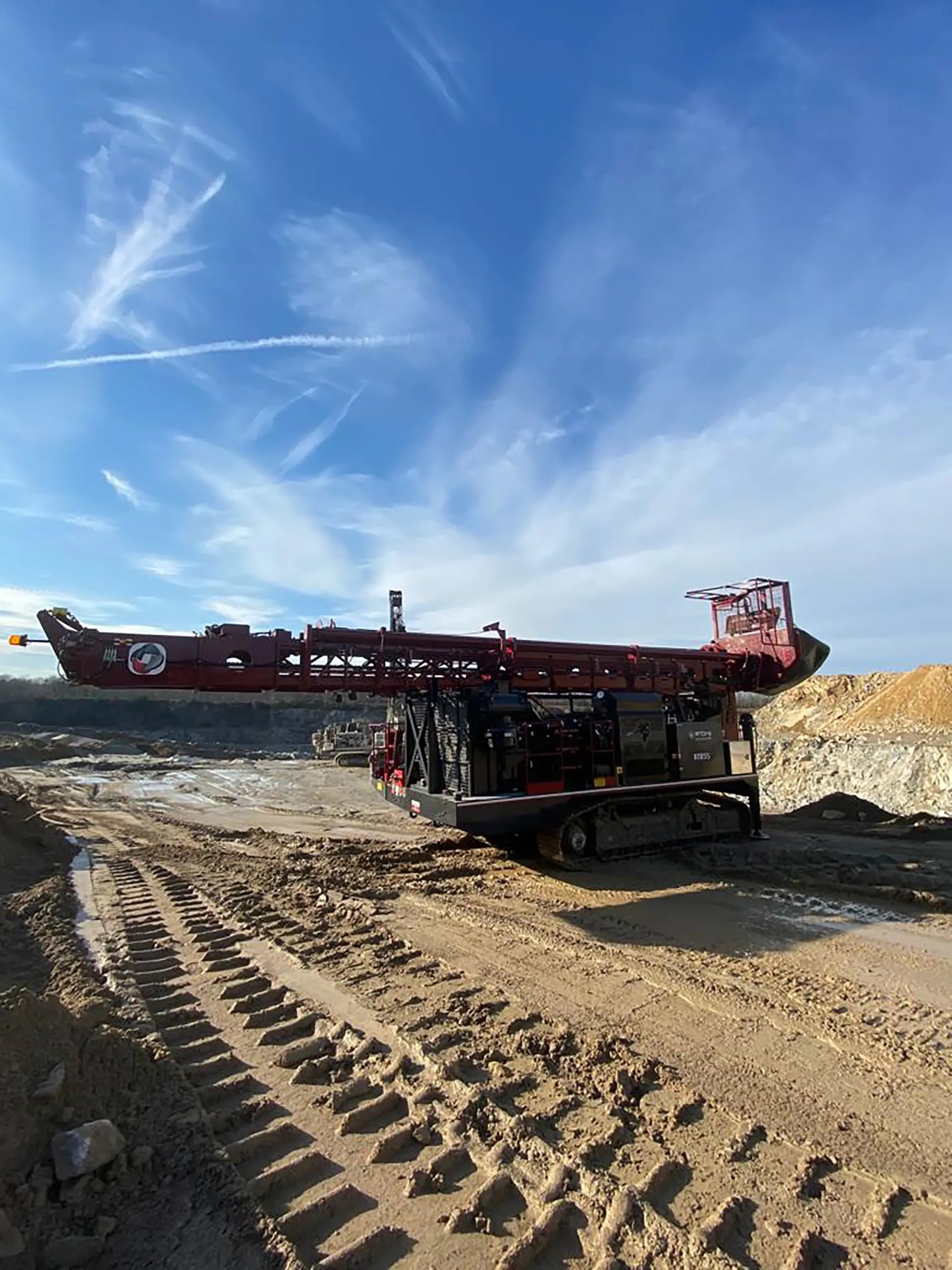

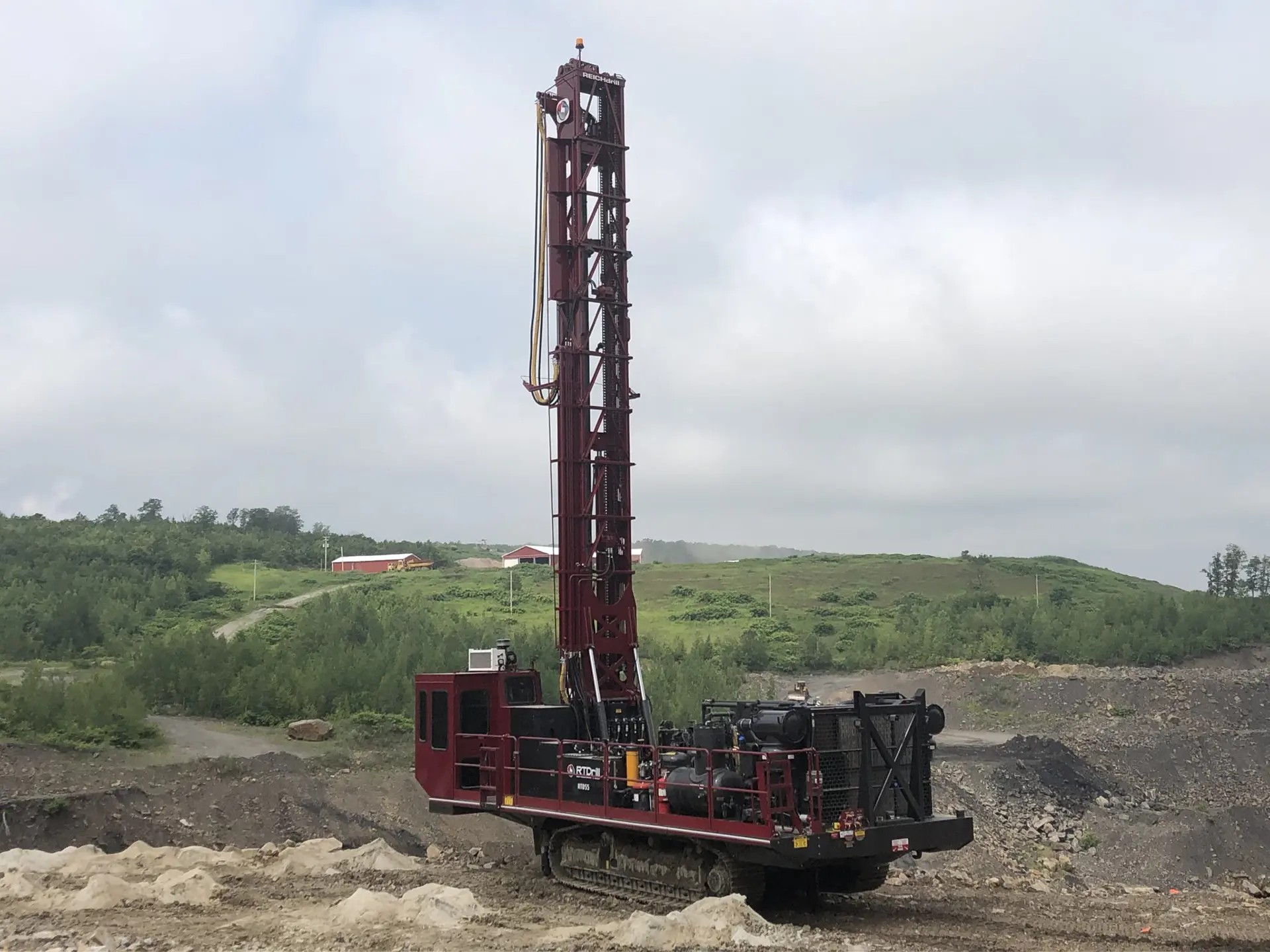

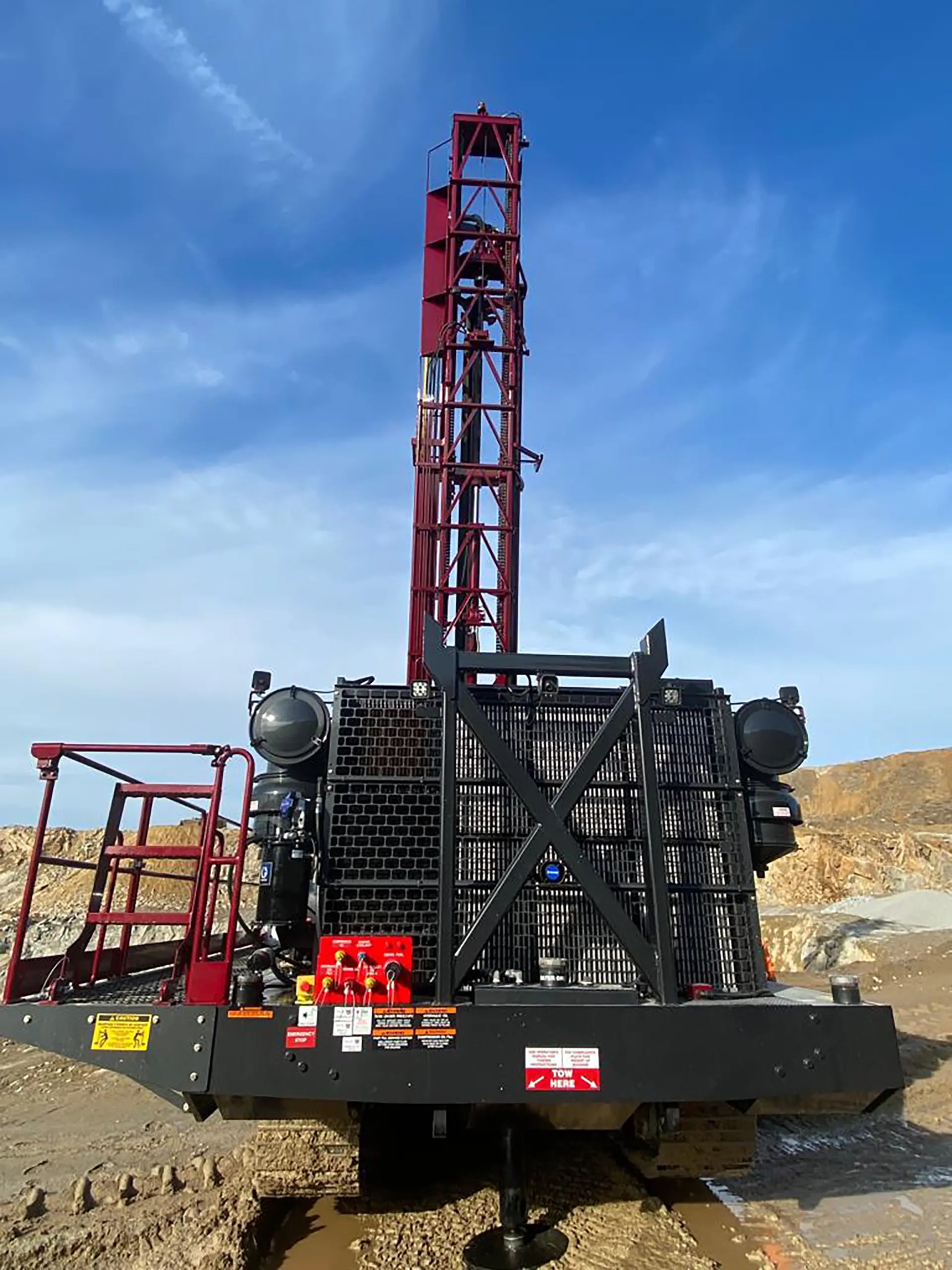

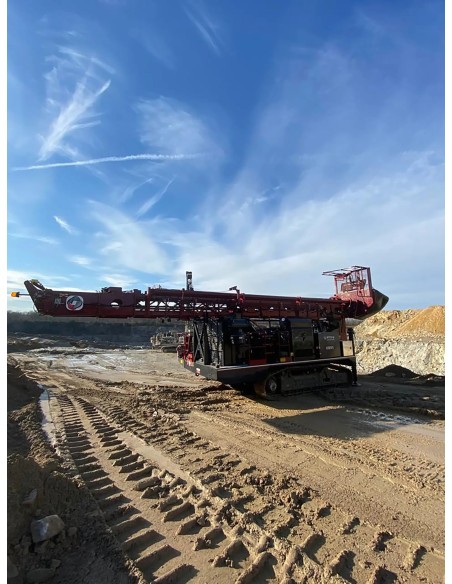

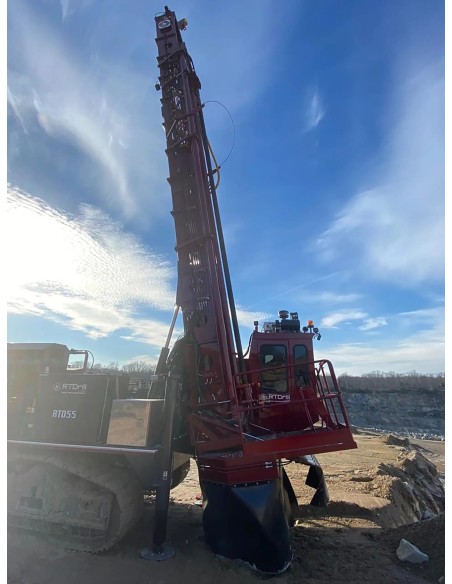

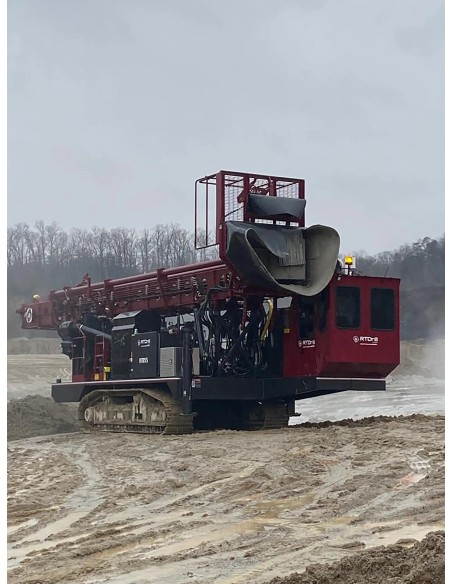

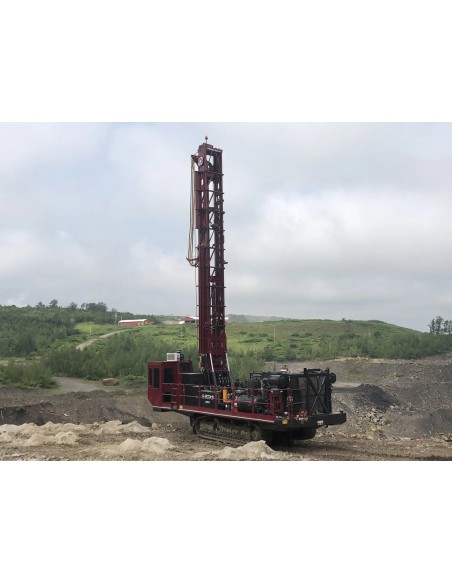

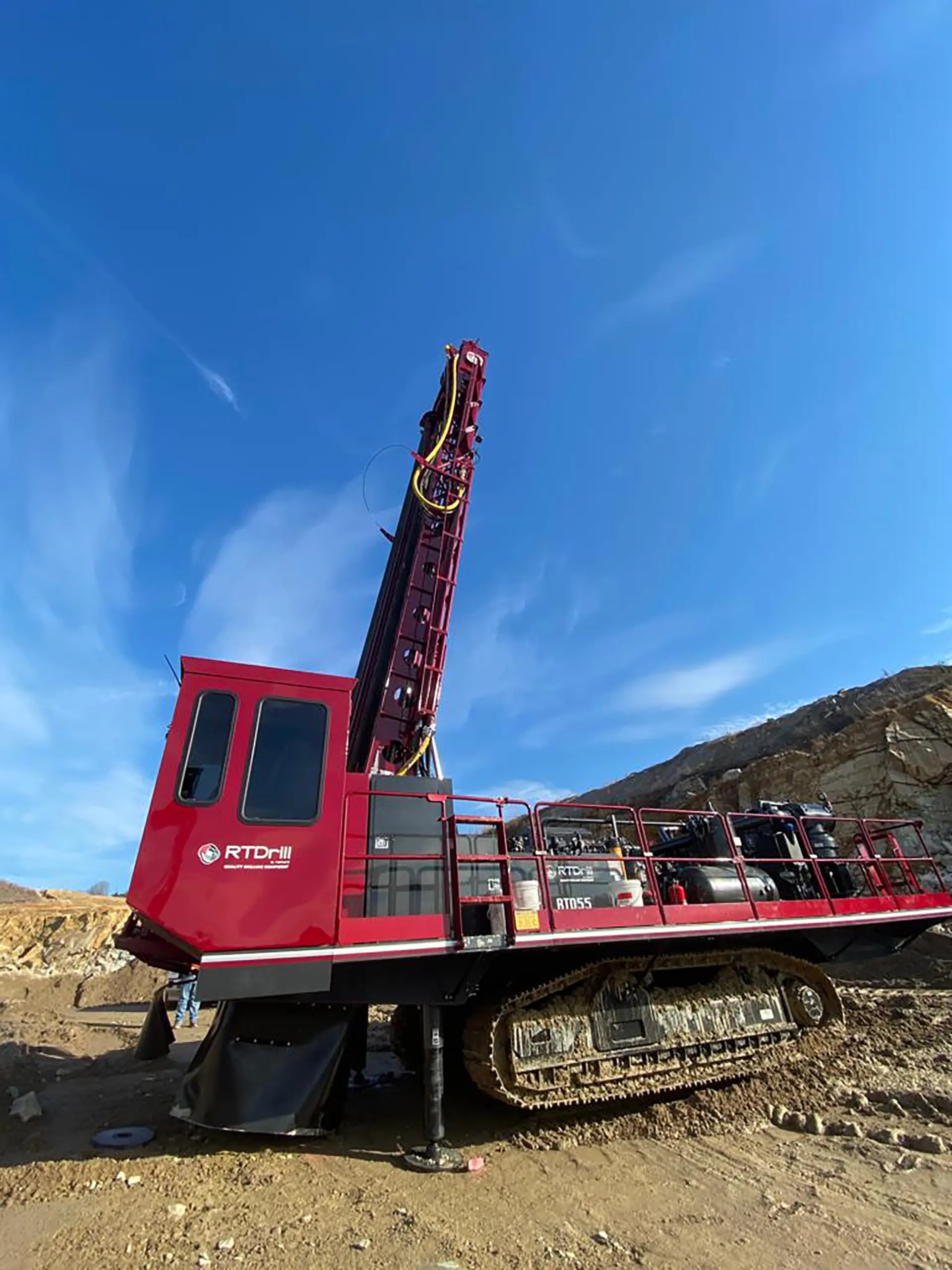

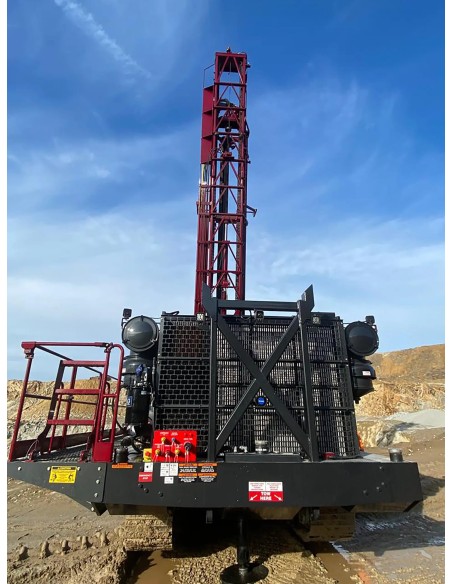

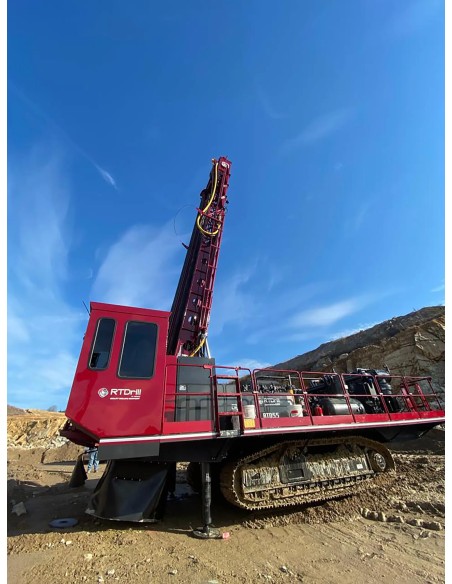

RTD55

Platform drill rig

The RTD55 is a heavy-duty powerhouse for maximum productivity. With up to 600 hp (447 kW) and 1,360 CFM (38.5 m³/min), it ensures fast drilling for holes from 5 to 6 ¾ inches (127 - 172 mm). Built for the most challenging terrains.

Technical specifications
  1. Engine type : Caterpillar C15 (Tier III - Tier IV - Tier IVf - Tier V)
  2. Compressor model : Reichdrill or equivalent
  3. Dimensions : 32.8 x 10 x 49.9 ft | 9,98 x 3,05 x 15,21 m
  4. Rotary head type : Dual motor system
Get your spare parts

Technical specifications

Dimensions and weight
Length 32.8 ft
9,99 m
Width 10 ft
3,05 m
Height 49.9 ft
15,21 m
Weight 80,000 lbs
36 287 kg
Engine and compressor
Engine type Caterpillar C15 (Tier III - Tier IV - Tier IVf - Tier V)
Power 580 - 600 hp
432 - 447 kW
Compressor model Reichdrill or equivalent
Air volume 900 - 1 360 CFM
25,5 - 38,5 m3/min
Speed 1 800 rpm
Fuel tank capacity 375 US gal
1 419 L
Pressure 350 - 375 PSI
24,1 - 25,9 bar
Drilling performance
Recommended hole size 5 - 6 ¾ in
127 - 172 mm
Carrousel capacity 4+1
Maximum drilling depth 149.6 ft
45,57 m
Rotary head type Dual motor system
Maximum rotation speed 141 rpm
Torque 64 543 lbf in
7 292 Nm
Recommended drill pipe length 30 ft
9,14 m
