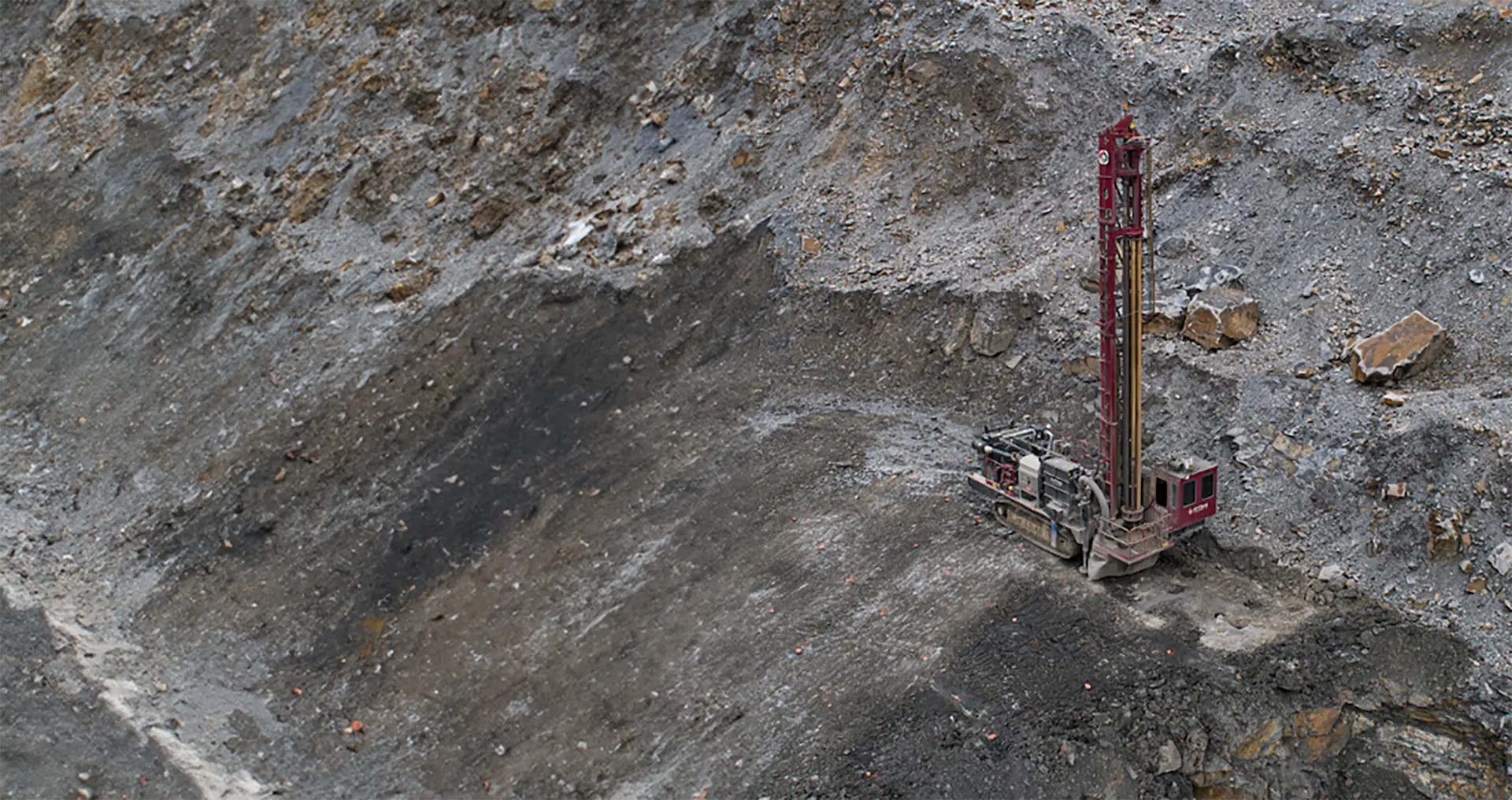

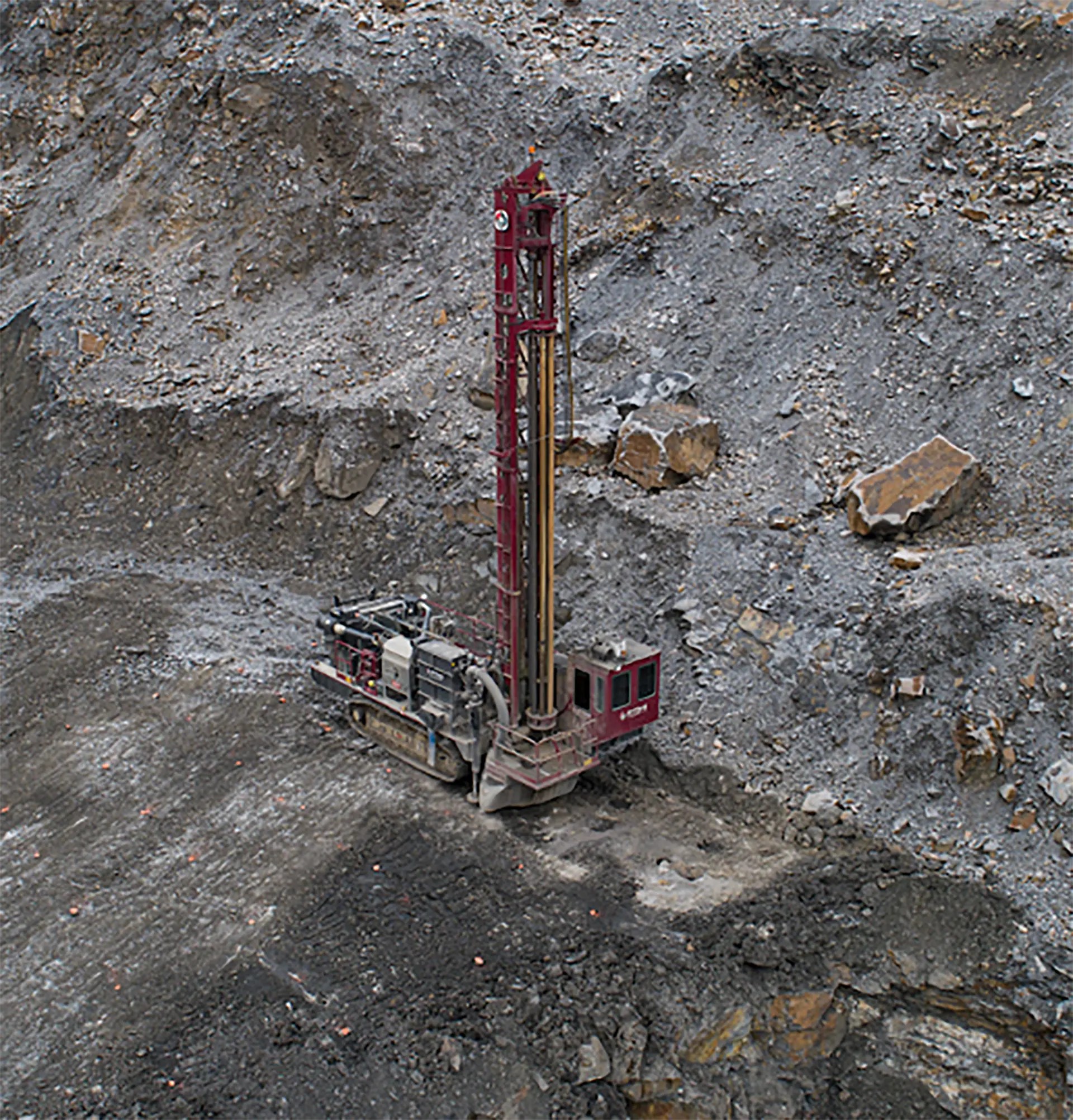

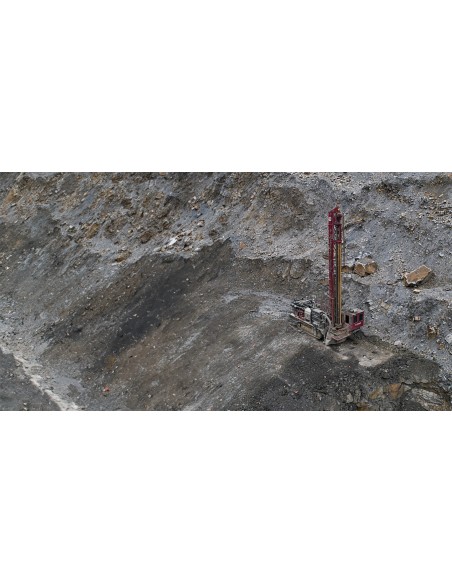

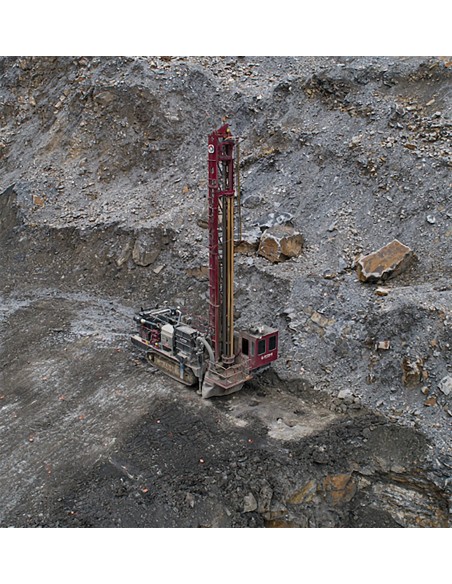

RTD55 C

Platform drill rig

The RTD55 C is a high-capacity rig designed for larger diameter drilling. With up to 600 hp (447 kW) and 1,100 CFM (31.1 m³/min), it ensures fast drilling for holes from 6 ½ to 9 inches (165 - 229 mm). Heavy-duty power for demanding sites.

Technical specifications
  1. Engine type : Caterpillar C15 (Tier III - Tier IV - Tier IVf - Tier V)
  2. Compressor model : Reichdrill or equivalent
  3. Dimensions : 32.8 x 10 x 49.9 ft | 9,98 x 3,05 x 15,21 m
Get your spare parts

Technical specifications

Dimensions and weight
Length 32.8 ft
9,99 m
Width 10 ft
3,05 m
Height 49.9 ft
15,21 m
Weight 80,000 lbs
36 287 kg
Engine and compressor
Engine type Caterpillar C15 (Tier III - Tier IV - Tier IVf - Tier V)
Power 580 - 600 hp
432 - 447 kW
Compressor model Reichdrill or equivalent
Air volume 750 - 1 100 CFM
21,2- 31,1 m3/min
Speed 1 800 rpm
Fuel tank capacity 375 US gal
1 419 L
Pressure 125 PSI
8,6 bar
Drilling performance
Recommended hole size 6 1⁄2 - 9 in
165 - 229 mm
Carrousel capacity 4+1
Maximum drilling depth 149.6 ft
45,57 m
Rotary head type Dual motor system
Torque 129,075 lbf-in
14 574 Nm
Recommended drill pipe length 30 ft
9,14 m
