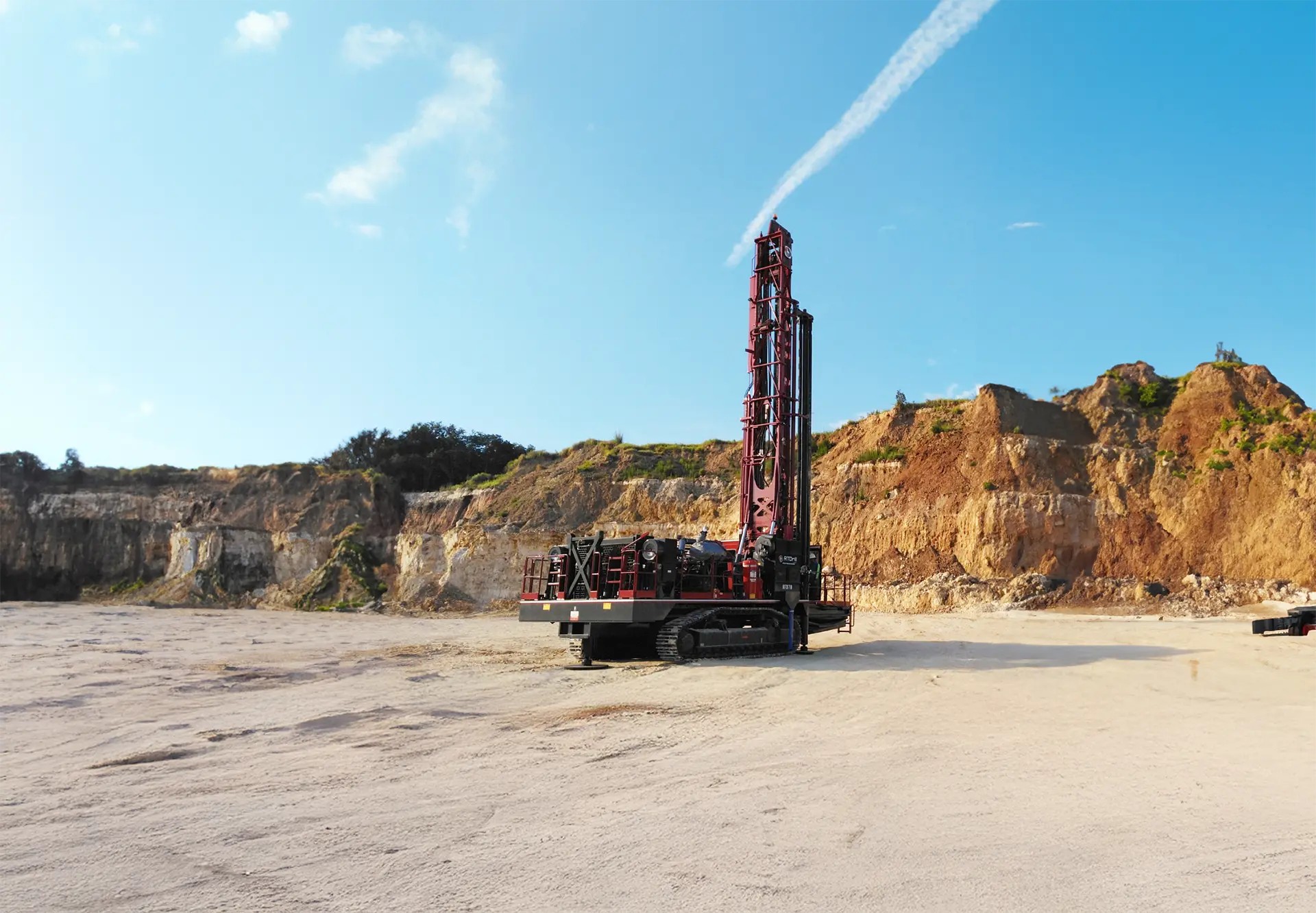

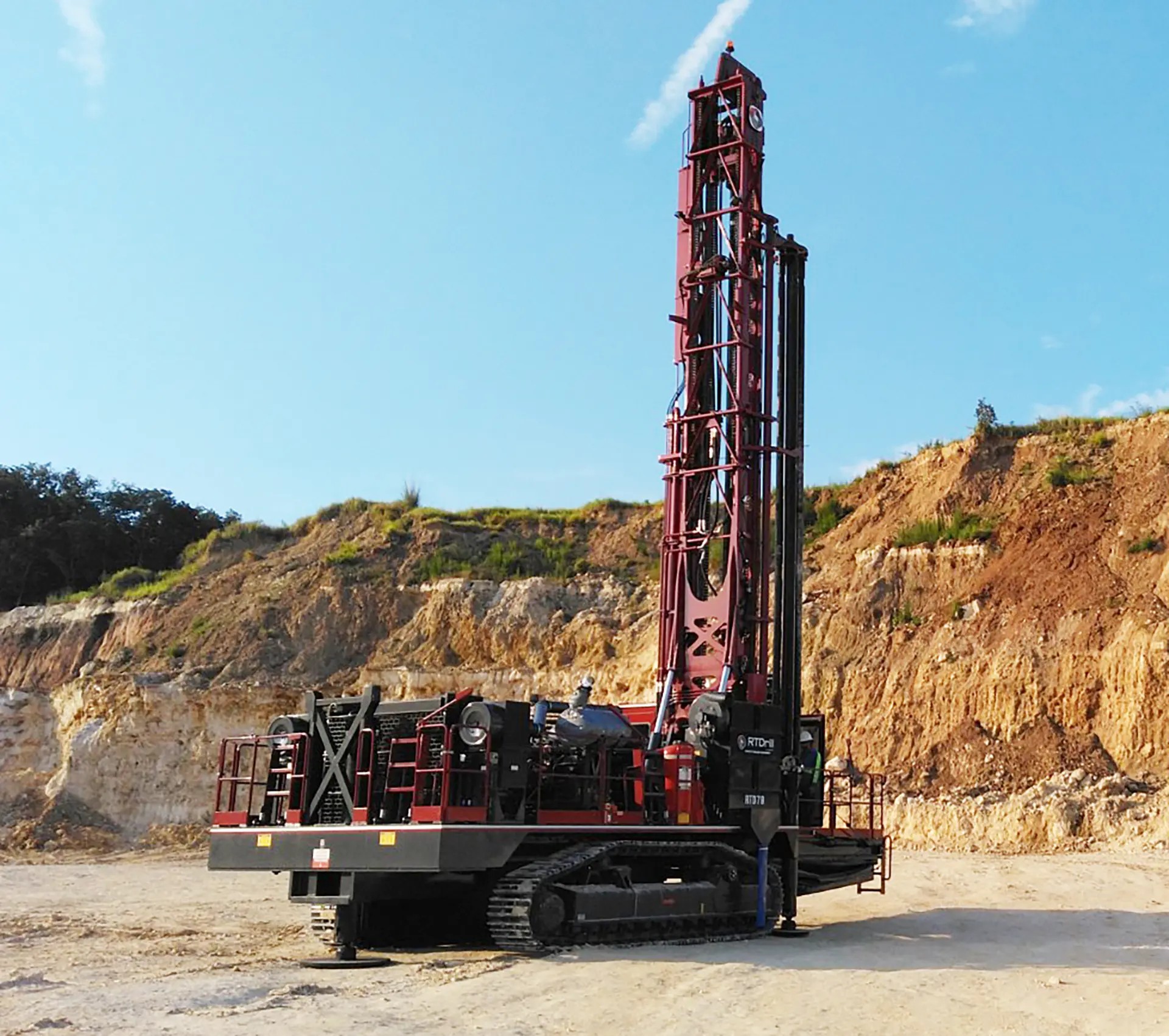

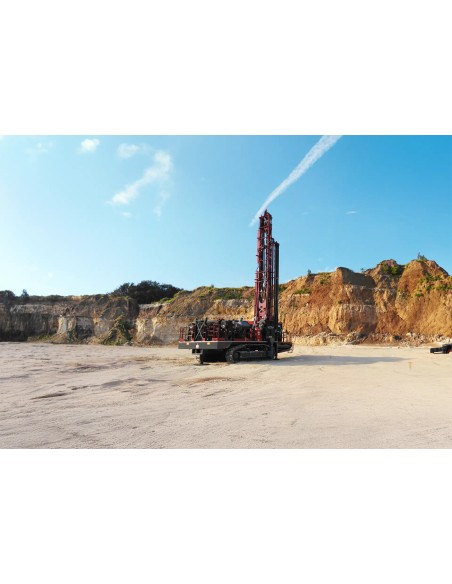

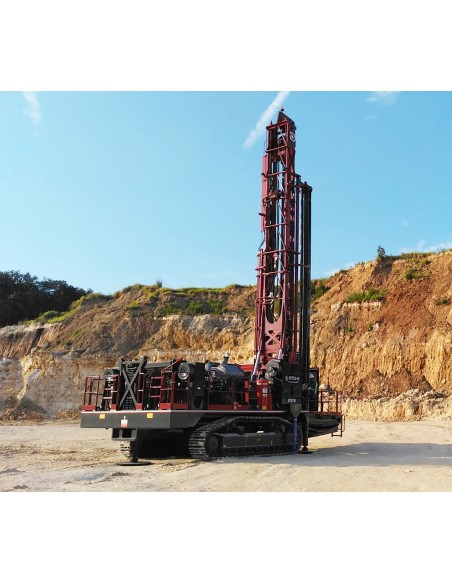

RTD70 - DTH/rotary platform drill rig for quarries
RTD70 - DTH/rotary platform drill rig for quarries
RTD70 - DTH/rotary platform drill rig for quarries
RTD70 - DTH/rotary platform drill rig for quarries

RTD70

Platform drill rig

The RTD70 is a top-tier drilling solution engineered for maximum power and large diameter holes. With up to 950 hp (708 kW) and 1,370 CFM (38.8 m³/min), it ensures fast drilling from 5 to 10 inches (127 - 254 mm). Built for peak performance in the toughest conditions.

Technical specifications
  1. Engine type : Caterpillar C18 - C27 Cummins QSK19 - QSK23 (Tier III - Tier IV final)
  2. Compressor model : Reichdrill or equivalent
  3. Dimensions : 36.7 x 20.6 x 54 ft | 11,18 x 6,3 x 16,5 m
  4. Rotary head type : Dual motor system
Get your spare parts

Technical specifications

Dimensions and weight
Length 58.66 ft
17,88 m
Width 12.5 ft
3,81 m
Height 16.33 ft
4,98 m
Weight 120,000 lbs
54 431 kg
Engine and compressor
Engine type Caterpillar C18 - C27 Cummins QSK19 - QSK23 (Tier III - Tier IV final)
Power 755 - 950 hp
563 - 708 kW
Compressor model Reichdrill or equivalent
Air volume 1 070 - 1 370 CFM
30,3 - 38,8 m3/min
Speed 1 800 rpm
Fuel tank capacity 600 US gal
2 271 L
Pressure 125 - 375 PSI
8,6 - 25,9 bar
Drilling performance
Recommended hole size 5 - 10 in
127 - 254 mm
Carrousel capacity 4+1
Maximum drilling depth 148.6 ft
45,29 m
Rotary head type Dual motor system
Maximum rotation speed 141 rpm
Torque 142 560 lbf in
16 107 Nm
