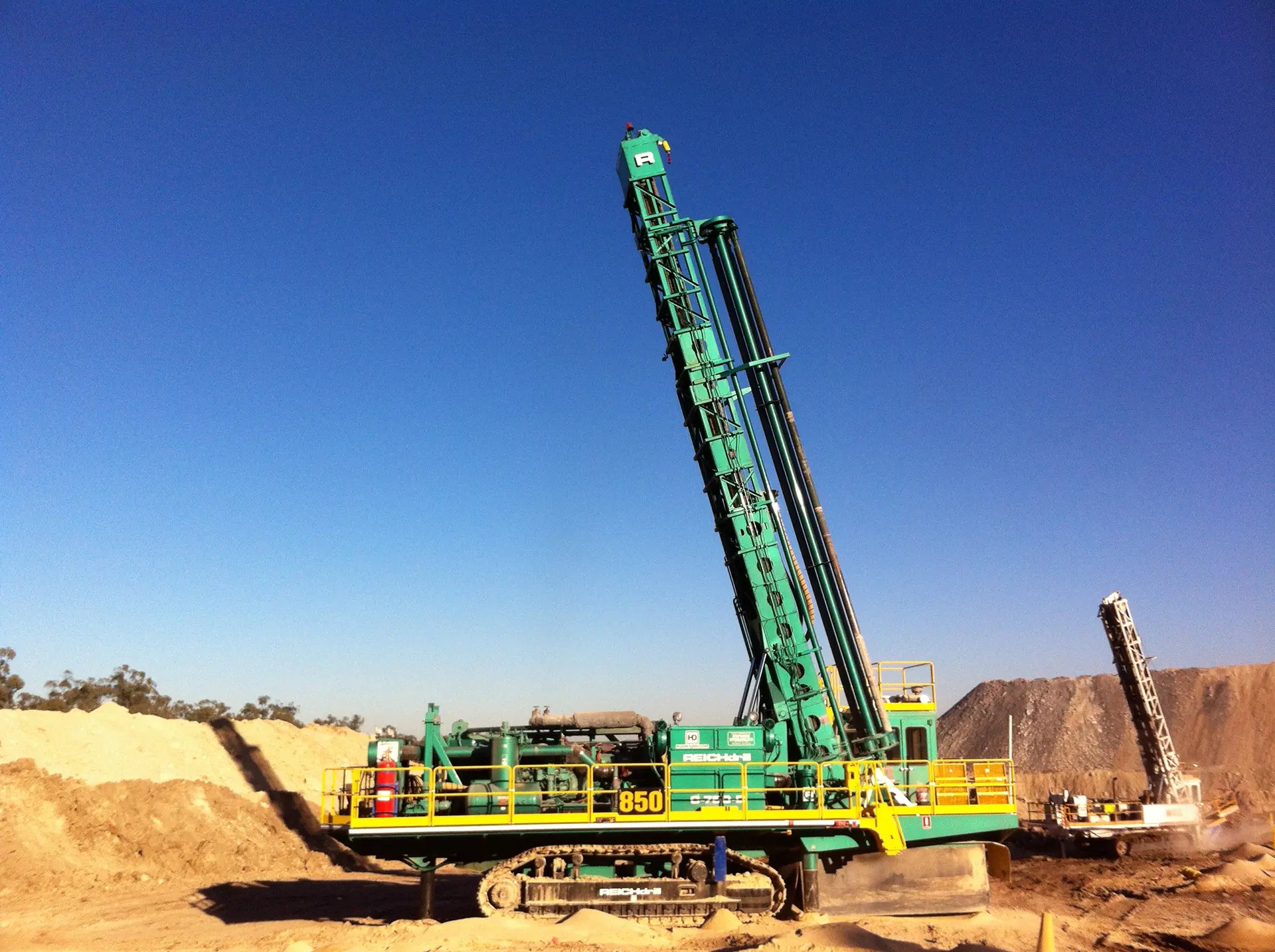

RTD75 - Platform drill rig

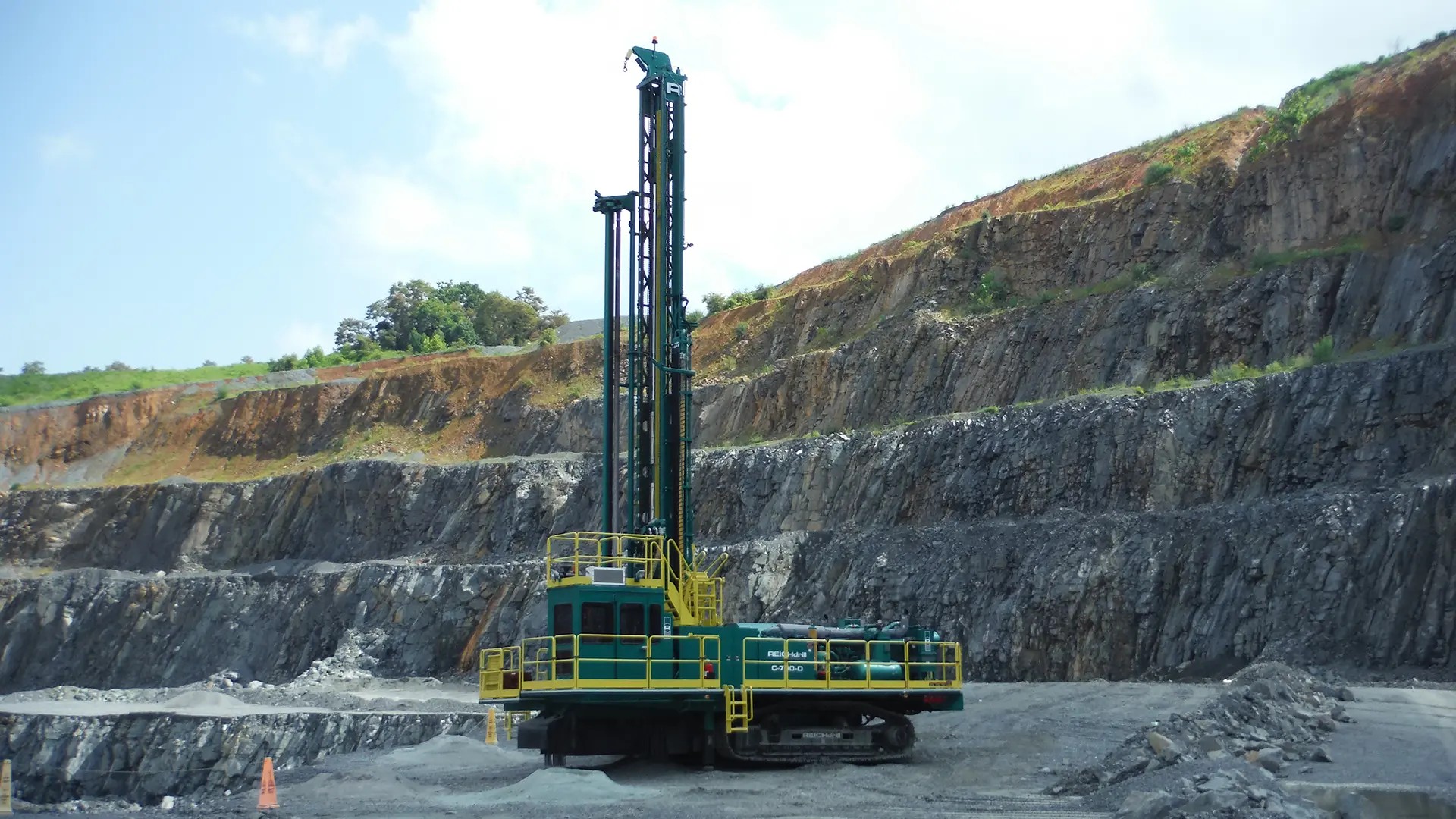

RTD75 - Platform drill rig

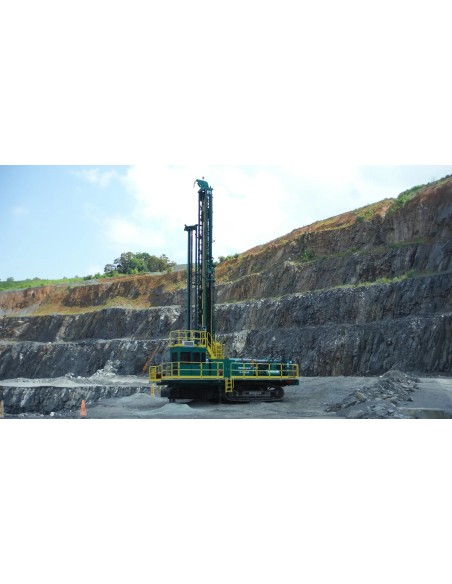

RTD75 - Platform drill rig

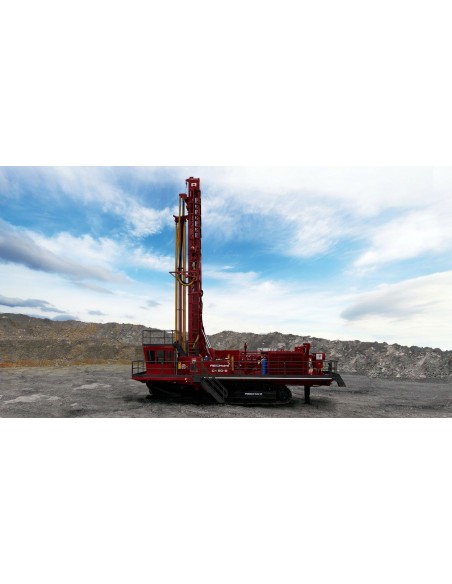

RTD75 - Platform drill rig
RTD75 - Rotary/DTH platform drill rig for mining
RTD75 - Rotary/DTH platform drill rig for mining

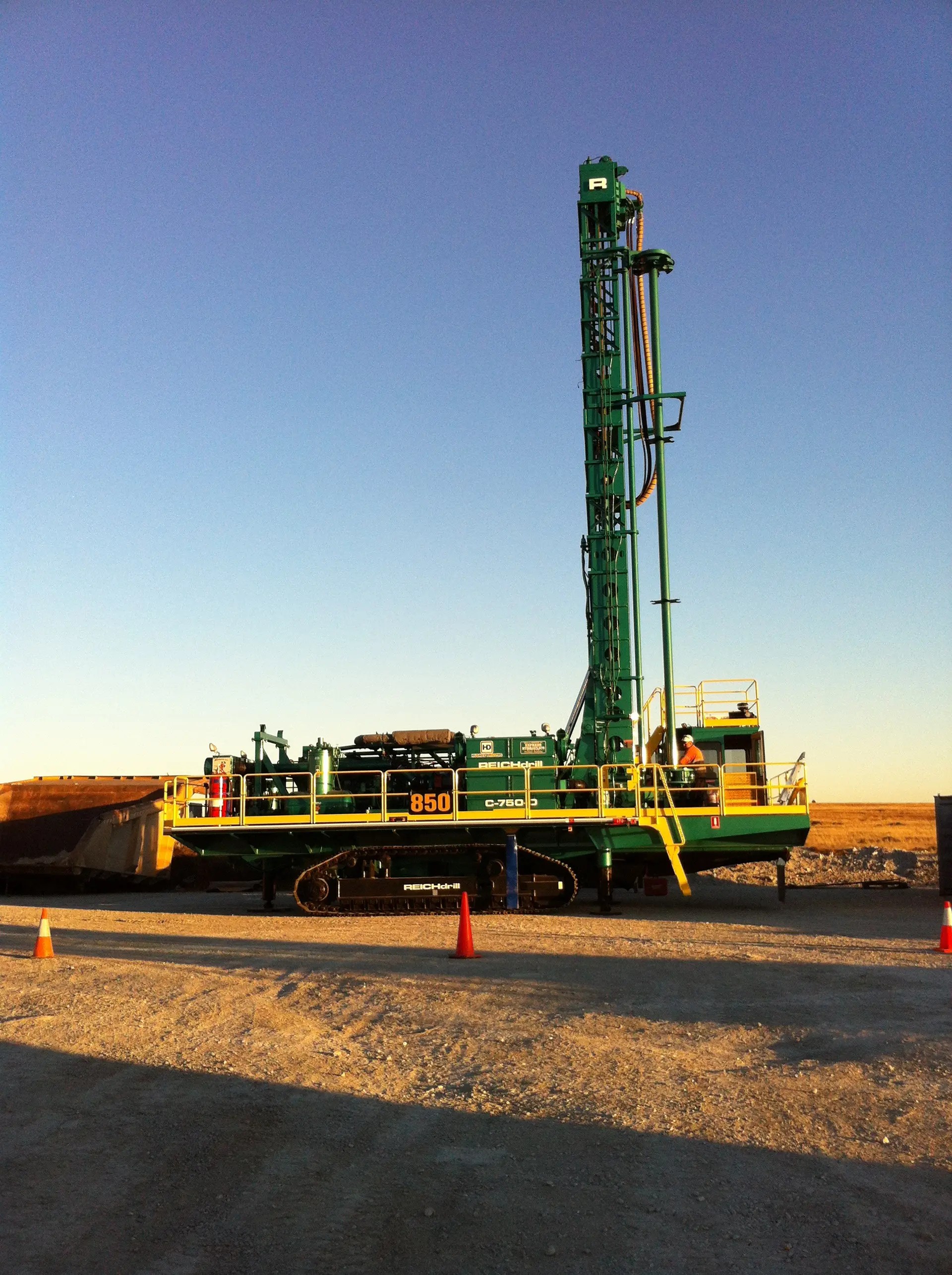

RTD75 - Platform drill rig

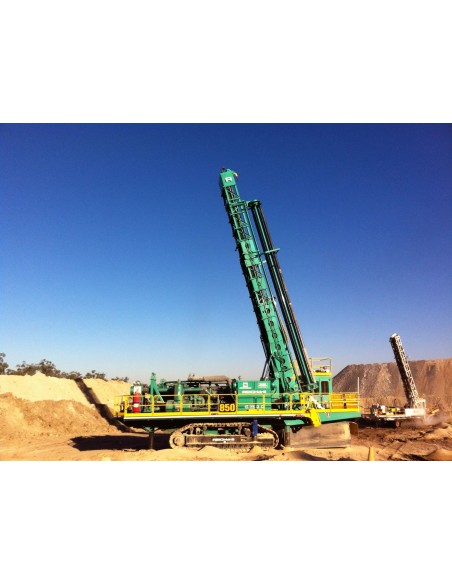

RTD75 - Platform drill rig

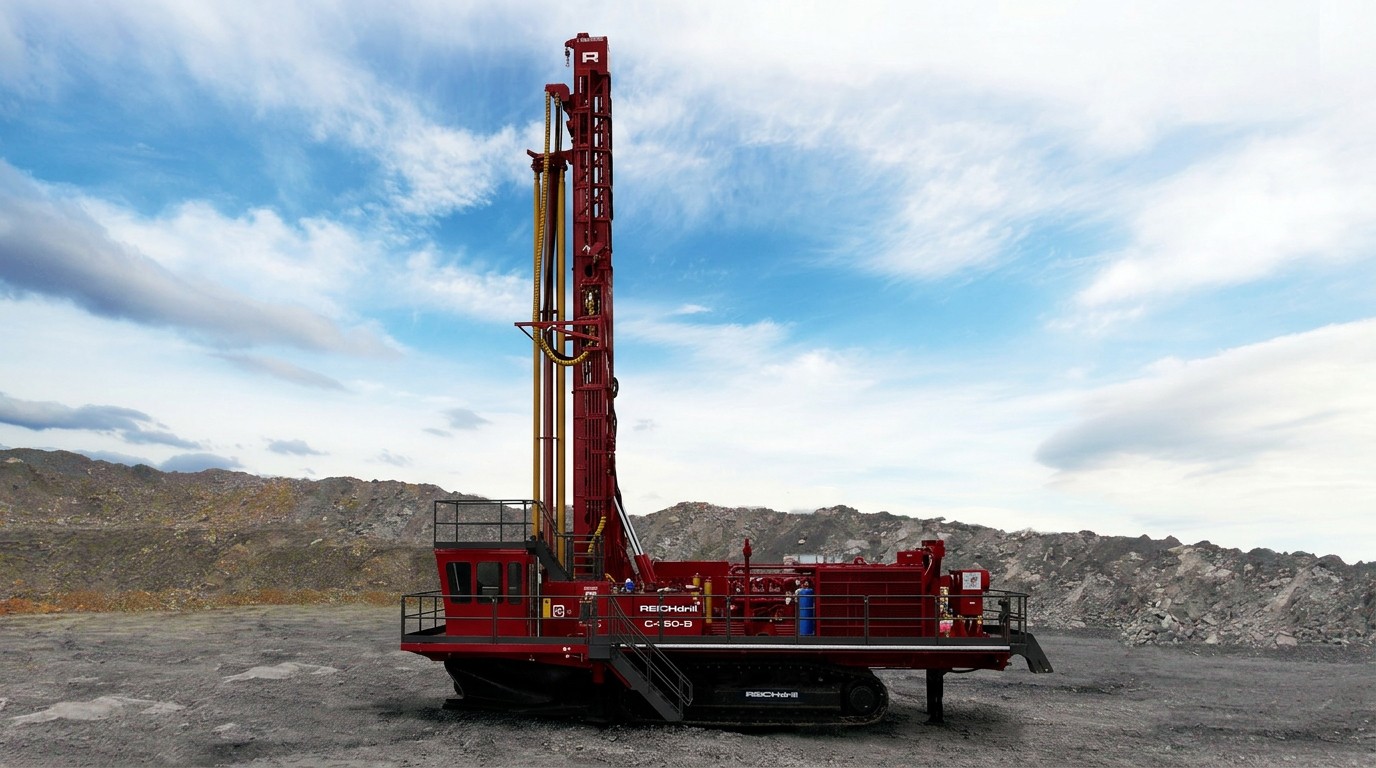

RTD75 - Platform drill rig

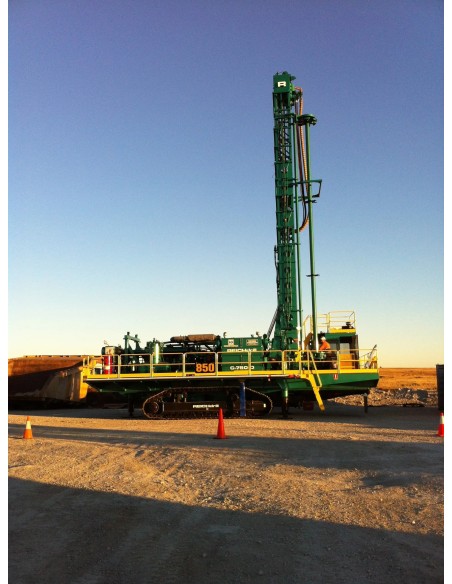

RTD75 - Platform drill rig
RTD75 - Rotary/DTH platform drill rig for mining
RTD75 - Rotary/DTH platform drill rig for mining

RTD75

Platform drill rig

The RTD75 is a heavy-duty powerhouse designed for large-diameter drilling projects. Delivering 950 hp (708 kW) and up to 2,700 CFM (76.5 m³/min) of air, it ensures fast drilling for holes from 9 to 12 ¼ inches (229 - 311 mm). Engineered for maximum productivity in the most demanding environments.

Technical specifications
  1. Engine type : Caterpillar C27 - Cummins QSK23 (Tier III - IV final)
  2. Compressor model : Reichdrill or equivalent
  3. Dimensions : 46 x 22.5 x 60 ft | 14,1 x 6,8 x 18,3 m
  4. Rotary head type : Dual motor system
Get your spare parts

Technical specifications

Dimensions and weight
Length 52.7 ft
16,1 m
Width 7.8 ft
2,4 m
Height 6.2 ft
1,9 m
Weight 180,000 lbs
81 647 kg
Engine and compressor
Engine type Caterpillar C27 - Cummins QSK23 (Tier III - IV final)
Power 950 hp
708 kW
Compressor model Reichdrill or equivalent
Air volume 1 370 - 2 700 CFM
38,8 - 76,5 m3/min
Speed 1 800 rpm
Fuel tank capacity 800 US gal
3 028L
Pressure 125 - 375 PSI
8,6 - 25,9 bar
Drilling performance
Recommended hole size 9 - 12 ¼ in
229 - 311 mm
Carrousel capacity 4+1
Maximum drilling depth 200 ft
61 m
Rotary head type Dual motor system
Maximum rotation speed 141 rpm
Torque 142 560 lbf in
16 107 Nm
