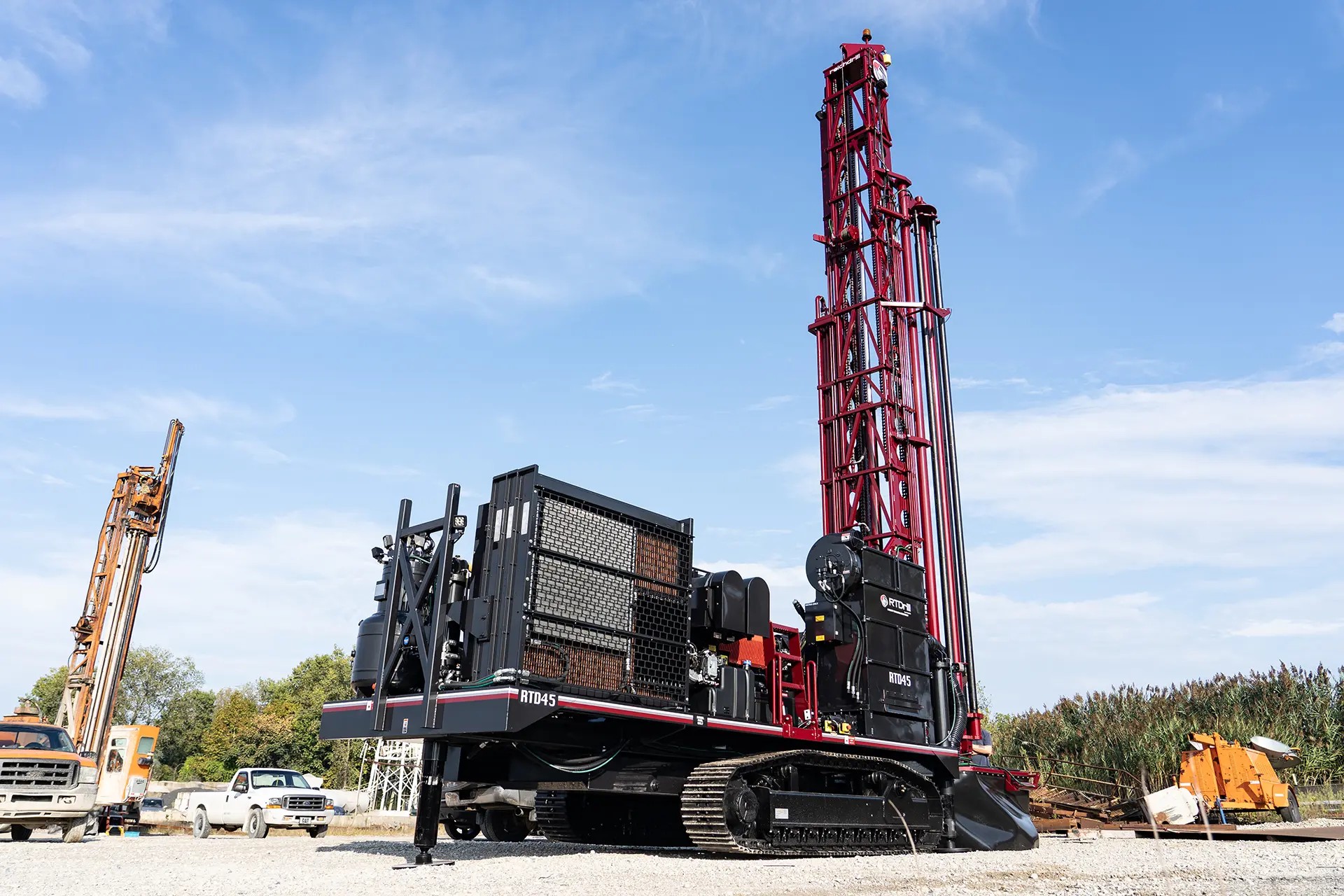

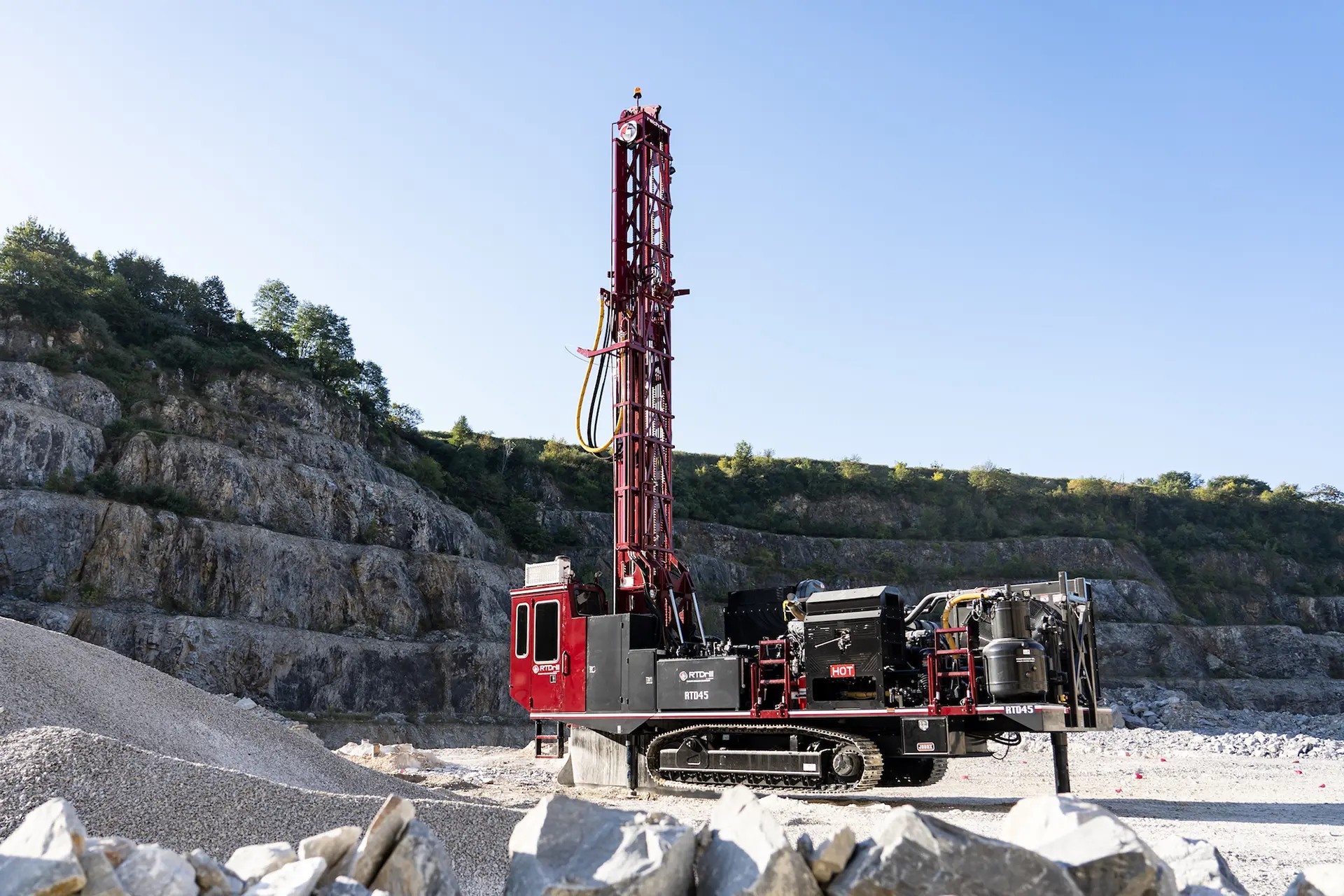

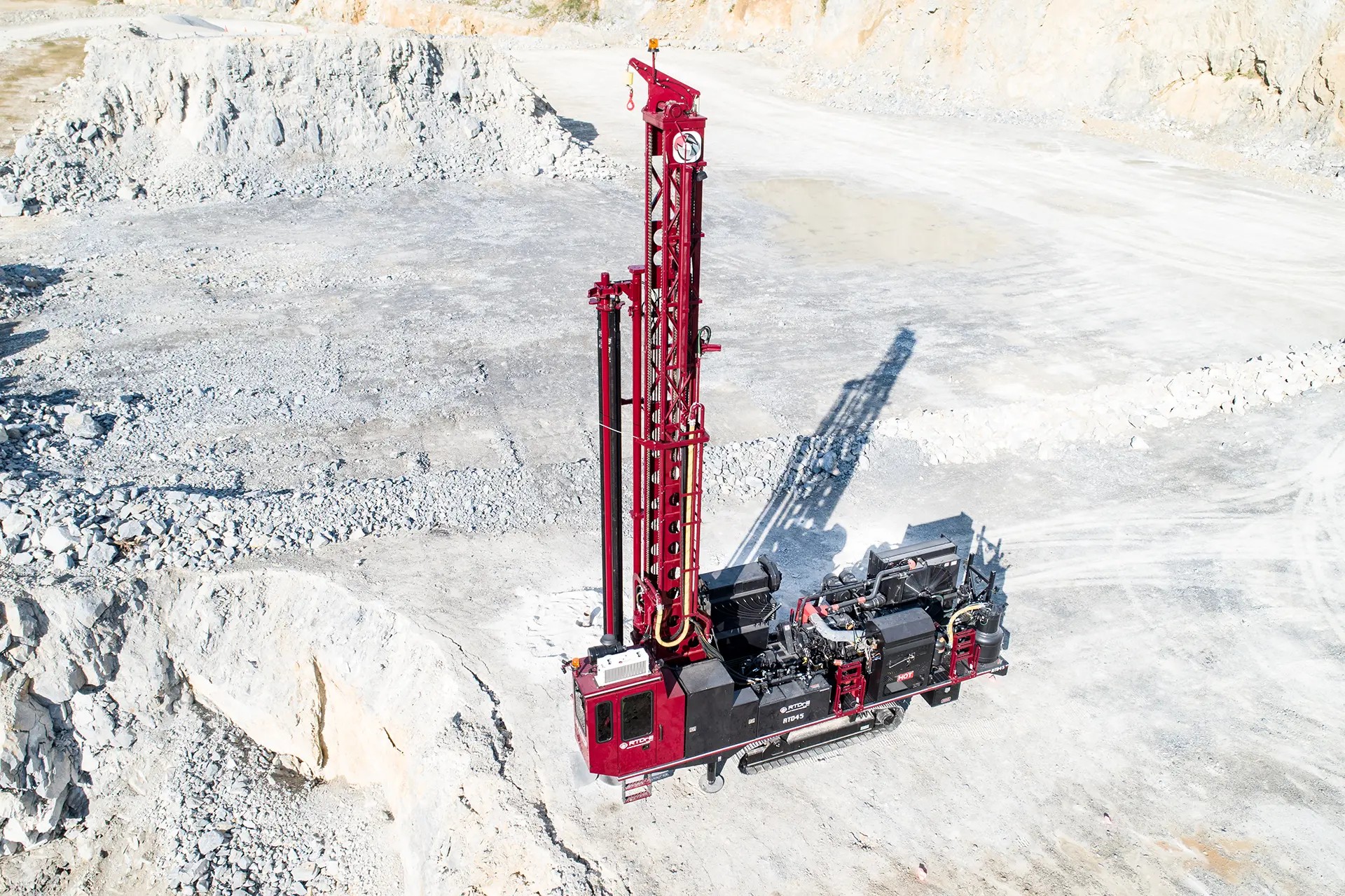

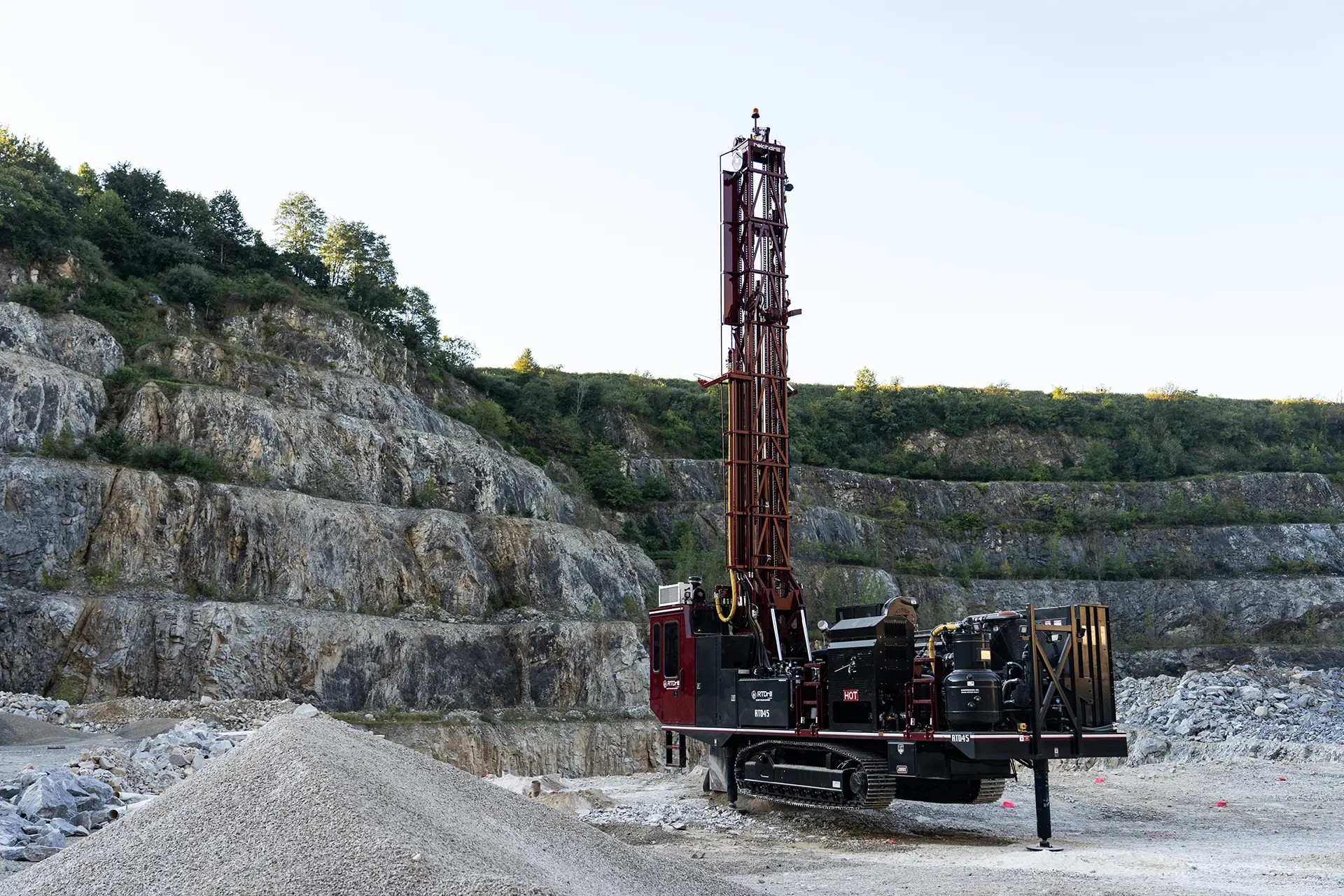

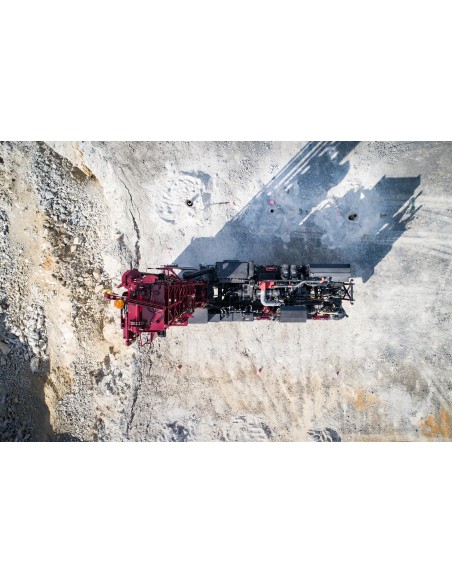

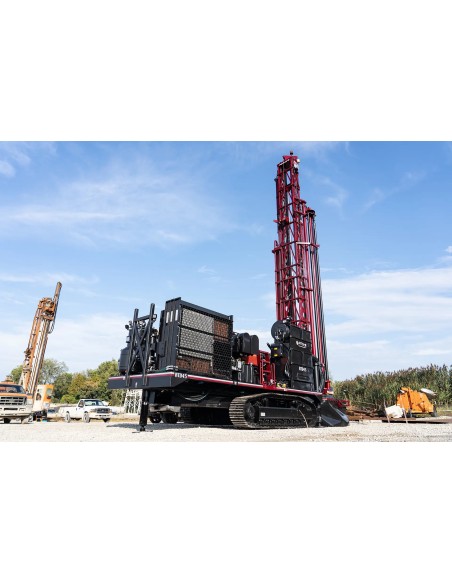

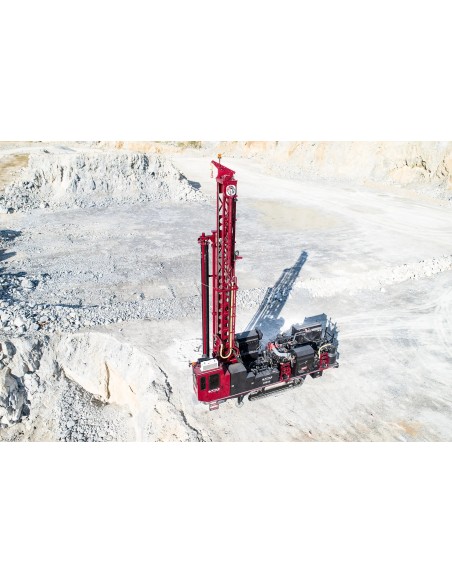

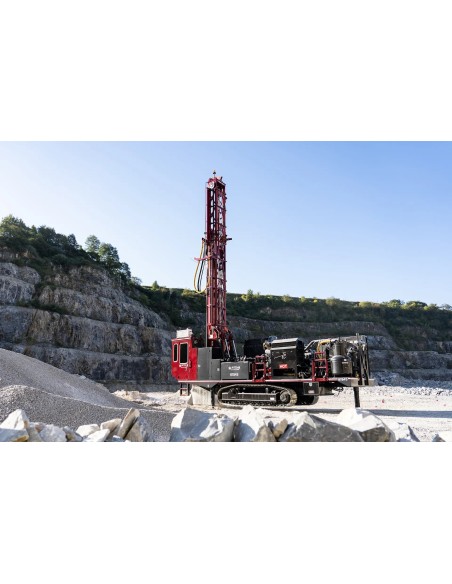

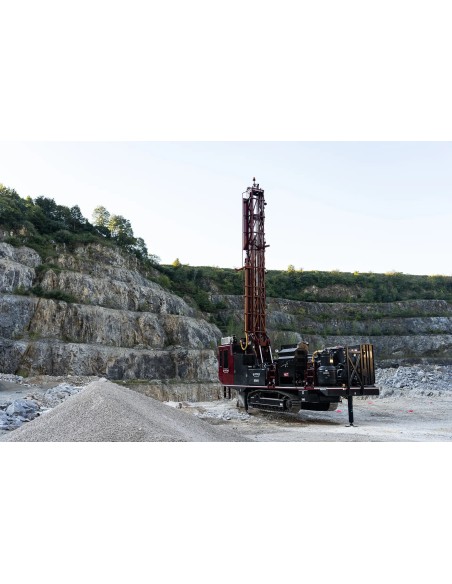

RTD45

Platform drill rig

Engineered for high-production drilling, the RTD45 delivers the perfect balance of power and precision. With a robust 540 hp (403 kW) engine and 900 CFM (25.5 m³/min) of air, it ensures rapid penetration for holes from 5 to 6.5 inches (127 – 165 mm). Rugged, reliable, and built to perform.

Technical specifications
  1. Engine type : Caterpillar C15 (Tier III - Tier IV final)
  2. Compressor model : Reichdrill or equivalent
  3. Dimensions : 28.92 x 8.25 ft x 40.38 ft | 8,81 x 2,51 x 12,31 m
  4. Rotary head type : Single hydraulic motor drive
Get your spare parts

Technical specifications

Dimensions and weight
Length 28.92 ft
8,81 m
Width 8.25 ft
2,51 m
Height 40.38 ft
12,31 m
Weight 65,000 lbs
29 483 kg
Engine and compressor
Engine type Caterpillar C15 (Tier III - Tier IV final)
Power 540 hp
403 kW
Compressor model Reichdrill or equivalent
Air volume 900 CFM
25,5 m3/min
Speed 1,800 rpm
Fuel tank capacity 245 US gal
927 L
Pressure 350 PSI
24,1 bar
Drilling performance
Recommended hole size 5 - 6.5 in
127 - 165 mm
Carrousel capacity 3+1
Maximum drilling depth 101.6 ft
30,97 m
Rotary head type Single hydraulic motor drive
Maximum rotation speed 141 rpm
Torque 63,108 lbf in
7 130 Nm
Recommended drill pipe length 25 ft
7,62 m
