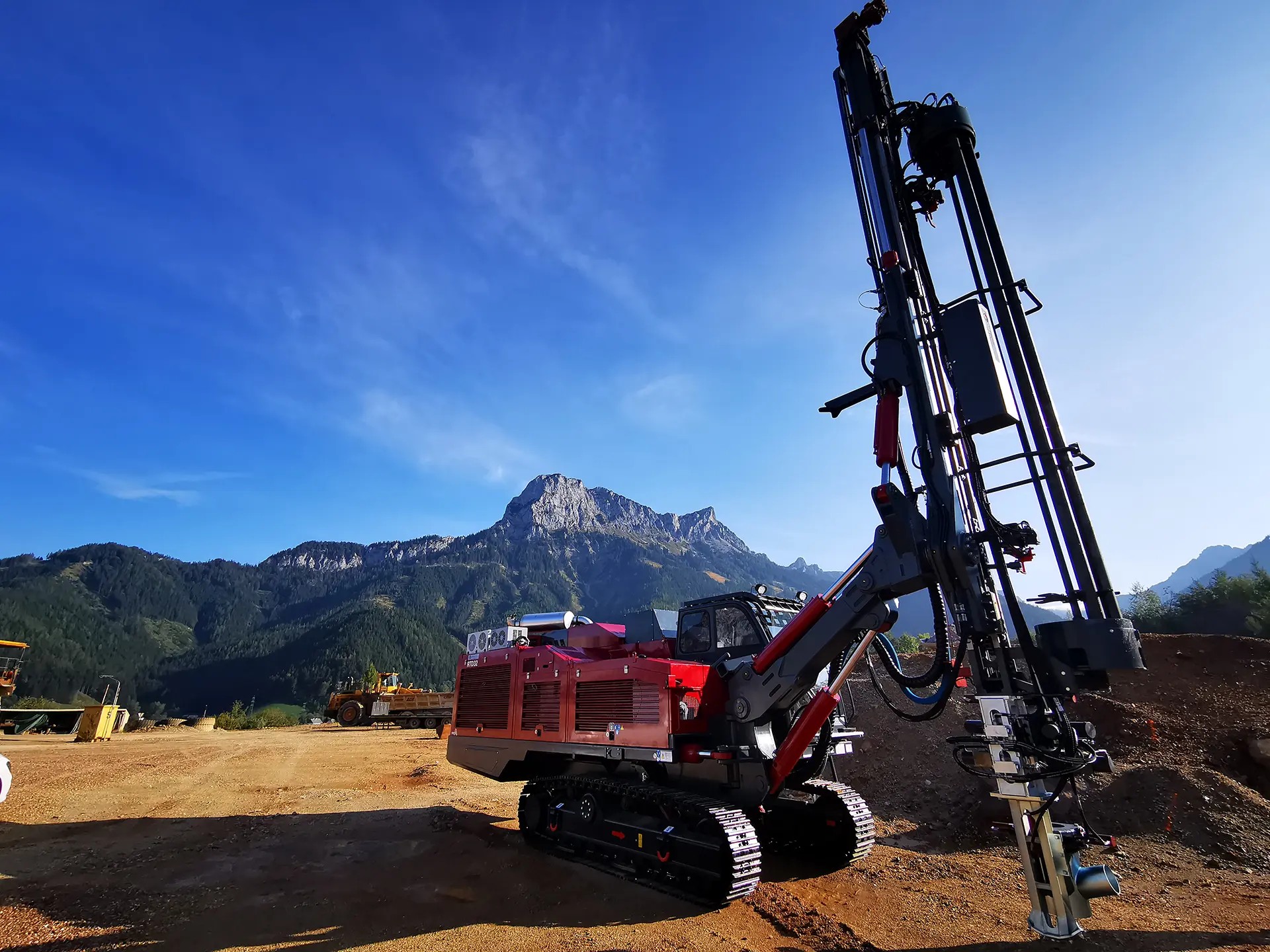

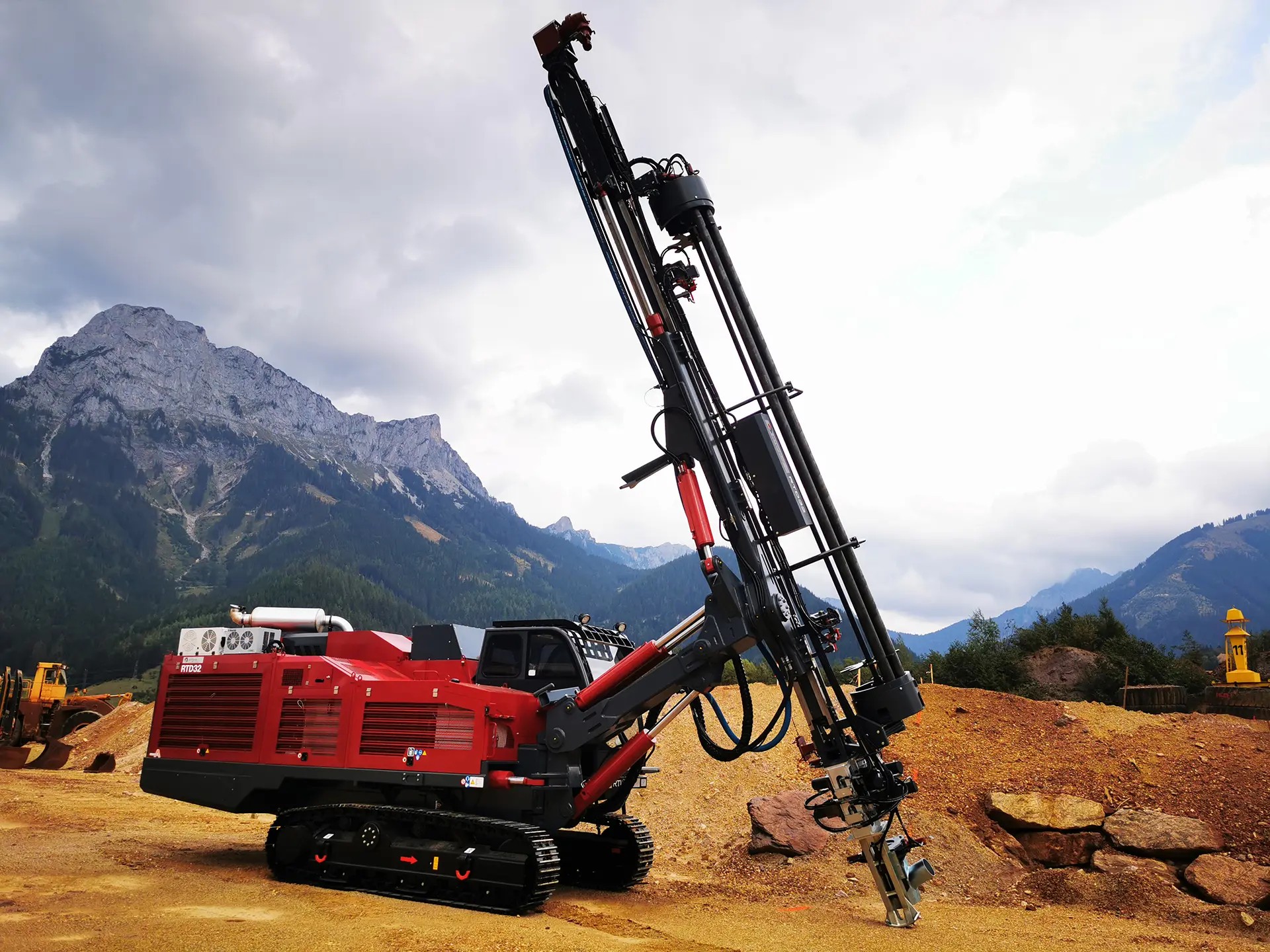

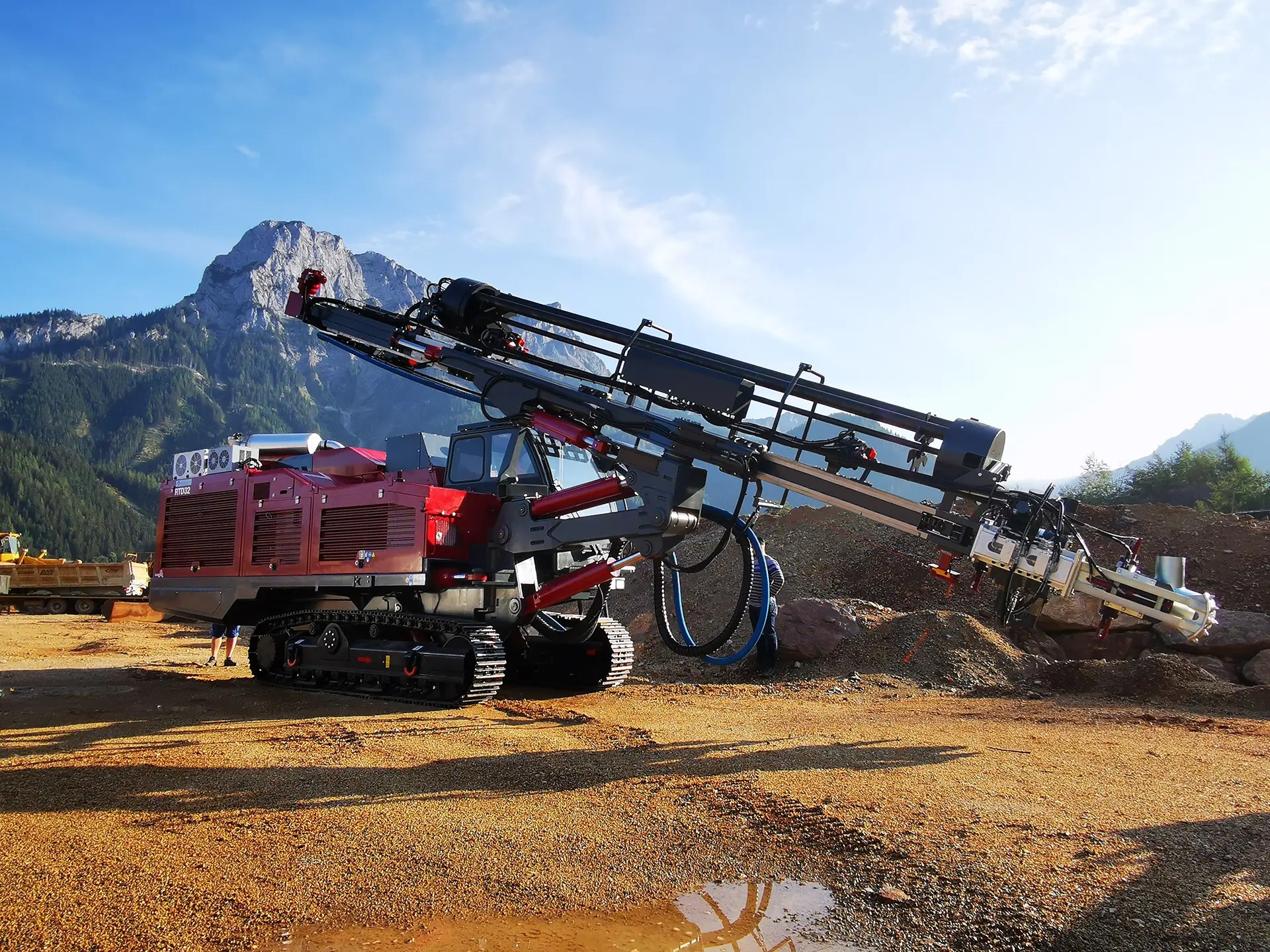

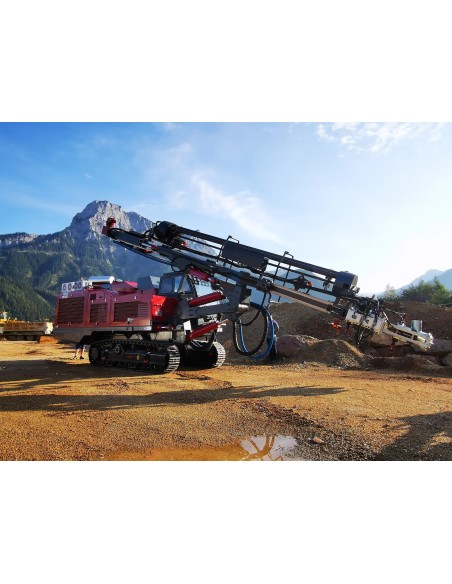

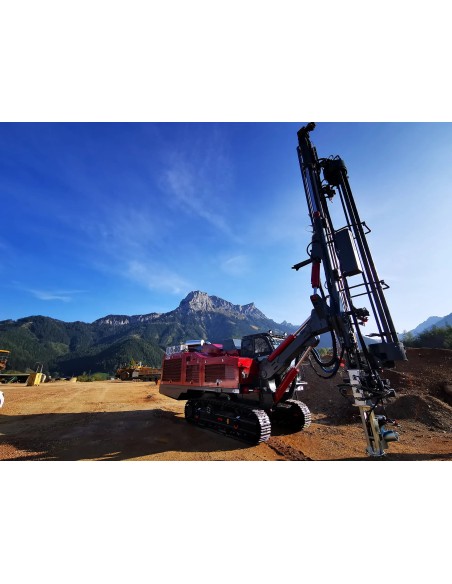

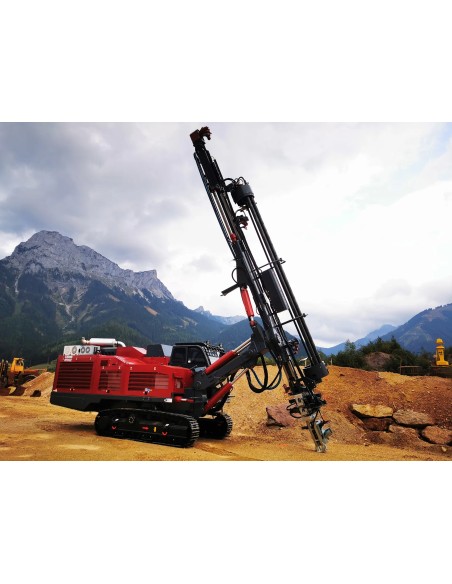

RTD32 - DTH crawler drill rig for quarries
RTD32 - DTH crawler drill rig for quarries
RTD32 - DTH crawler drill rig for quarries
RTD32 - DTH crawler drill rig for quarries
RTD32 - DTH crawler drill rig for quarries
RTD32 - DTH crawler drill rig for quarries

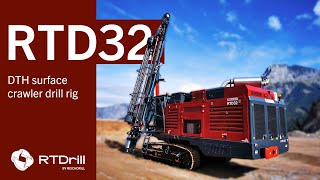

RTD32

Articulated boom

Drilling holes 4.7 - 8 in | 120 - 200 mm up to 157 ft | 48 m.

Technical specifications
  1. Engine type : Caterpillar C15 (Tier III - Tier V)
  2. Compressor model : GHH Rand - CF1000H
  3. Dimensions : 41.17 x 8 x 12.14 ft | 12,55 x 2,5 x 3,70 m
  4. Rotary head type : Eurodrill RH5X
Get your spare parts

Technical specifications

Dimensions and weight
Length 41.17 ft
12,55 m
Width 8 ft
2,50 m
Height 12.14 ft
3,70 m
Weight 70,672 lbs
32 000 kg
Engine and compressor
Engine type Caterpillar C15 (Tier III - Tier V)
Power 540 - 550 hp
403 - 410 kW
Compressor model GHH Rand - CF1000H
Air volume 1,003 CFM
28,4 m3/min
Speed 1,800 - 2,100 rpm
Fuel tank capacity 251 US gal
950 L
Pressure 406 PSI
28 bar
Drilling performance
Recommended hole size 4.7 - 8 in
120 - 200 mm
Carrousel capacity 7+1
Drill tube length 19.6 ft
6,000 mm
Drill tube diameter 4 - 4.5 - 5.5 in
102-114-127 mm
Maximum drilling depth 157 ft
48 m
Rotary head type Eurodrill RH5X
Maximum rotation speed 92 rpm
Torque 25,446 lbf in
3,45 kNm

Request a personalized quote now!

E-mail
contact@rtdrill.com
Phone
+1 (814) 342-5500
Factory & office
99 Troy Hawk Run Highway, Philipsburg, PA 16866, United States of America

Related upgrades

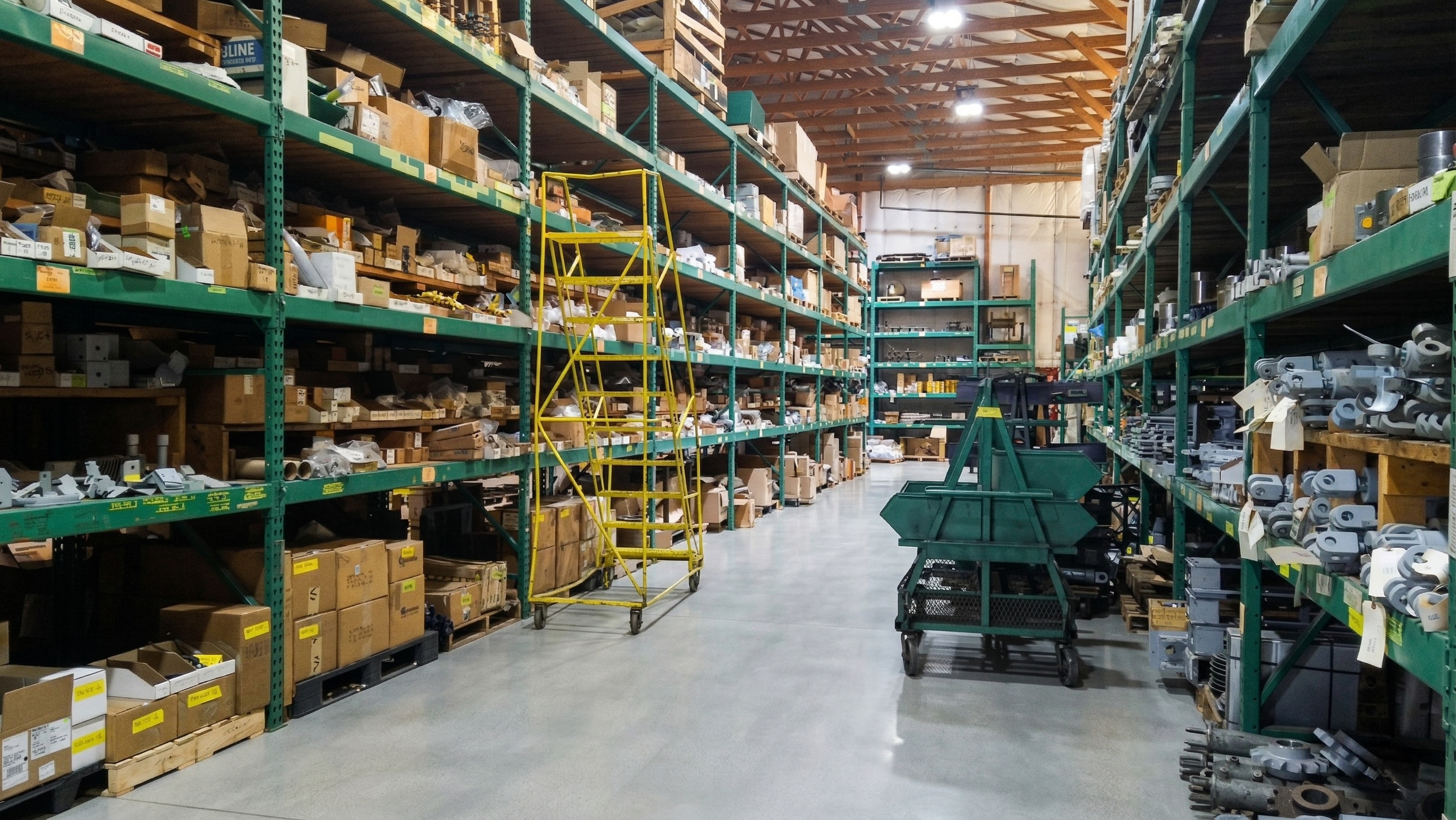

Spare Parts

Spare parts

Maintain the integrity of your rig with our comprehensive spare parts service. From critical hydraulic components to everyday wear items, we provide factory-certified parts designed for seamless compatibility and long-term durability. Engineered to endure, just like your drill.

Spare parts

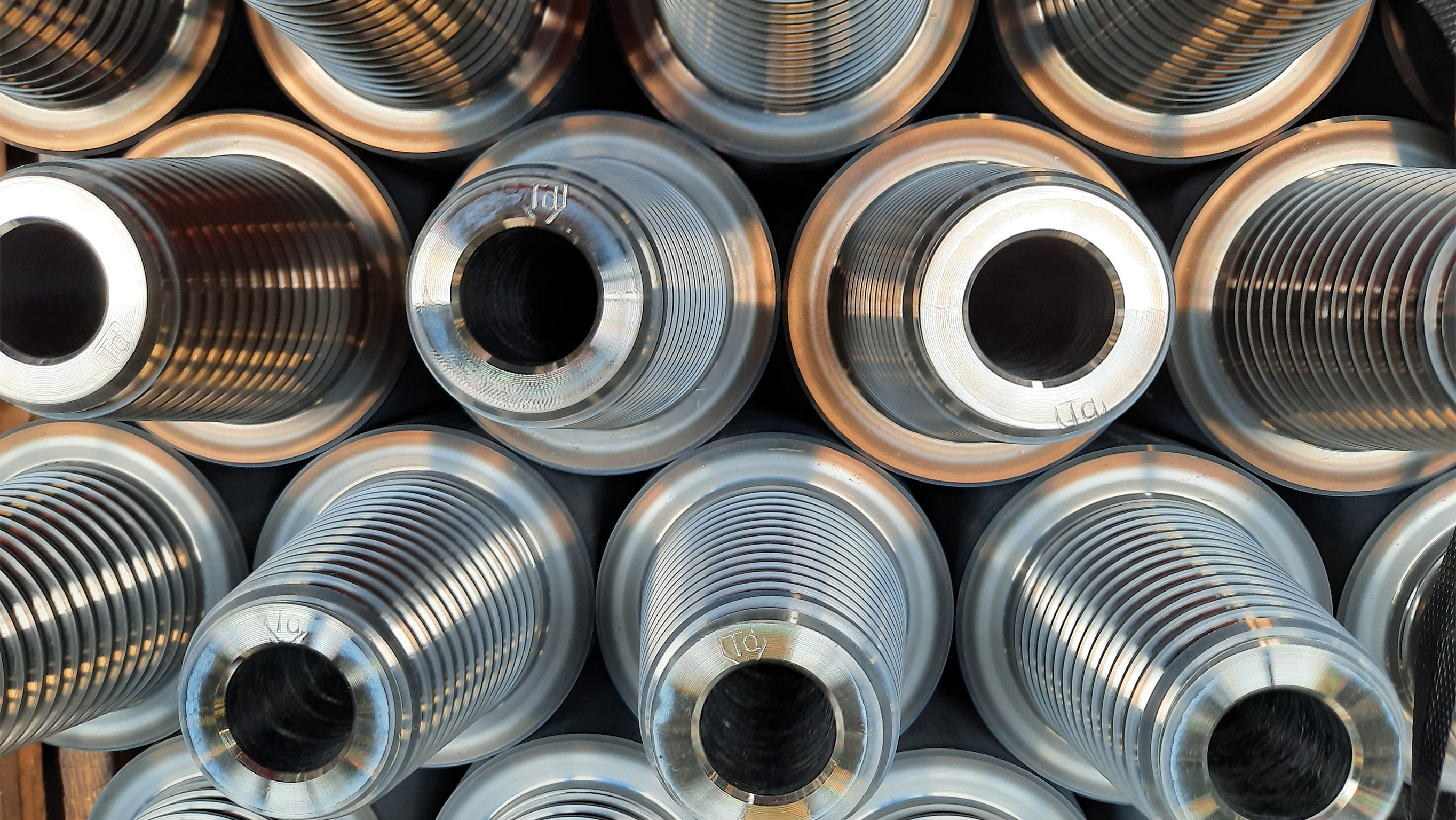

Rods
