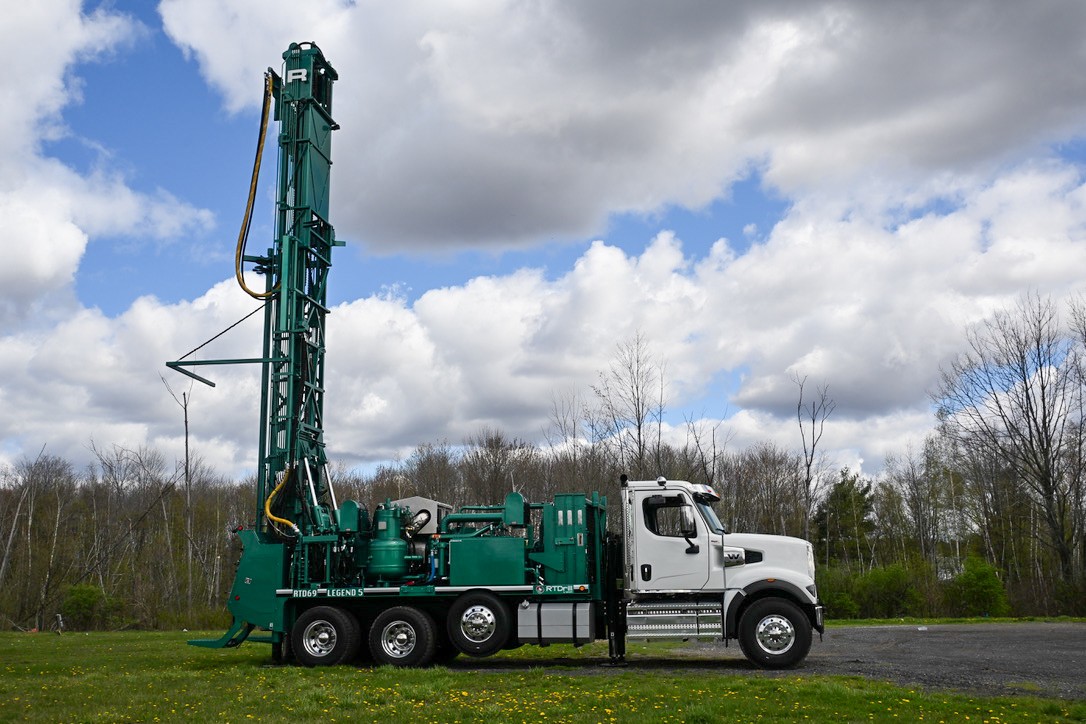

RTD69 Legend 5

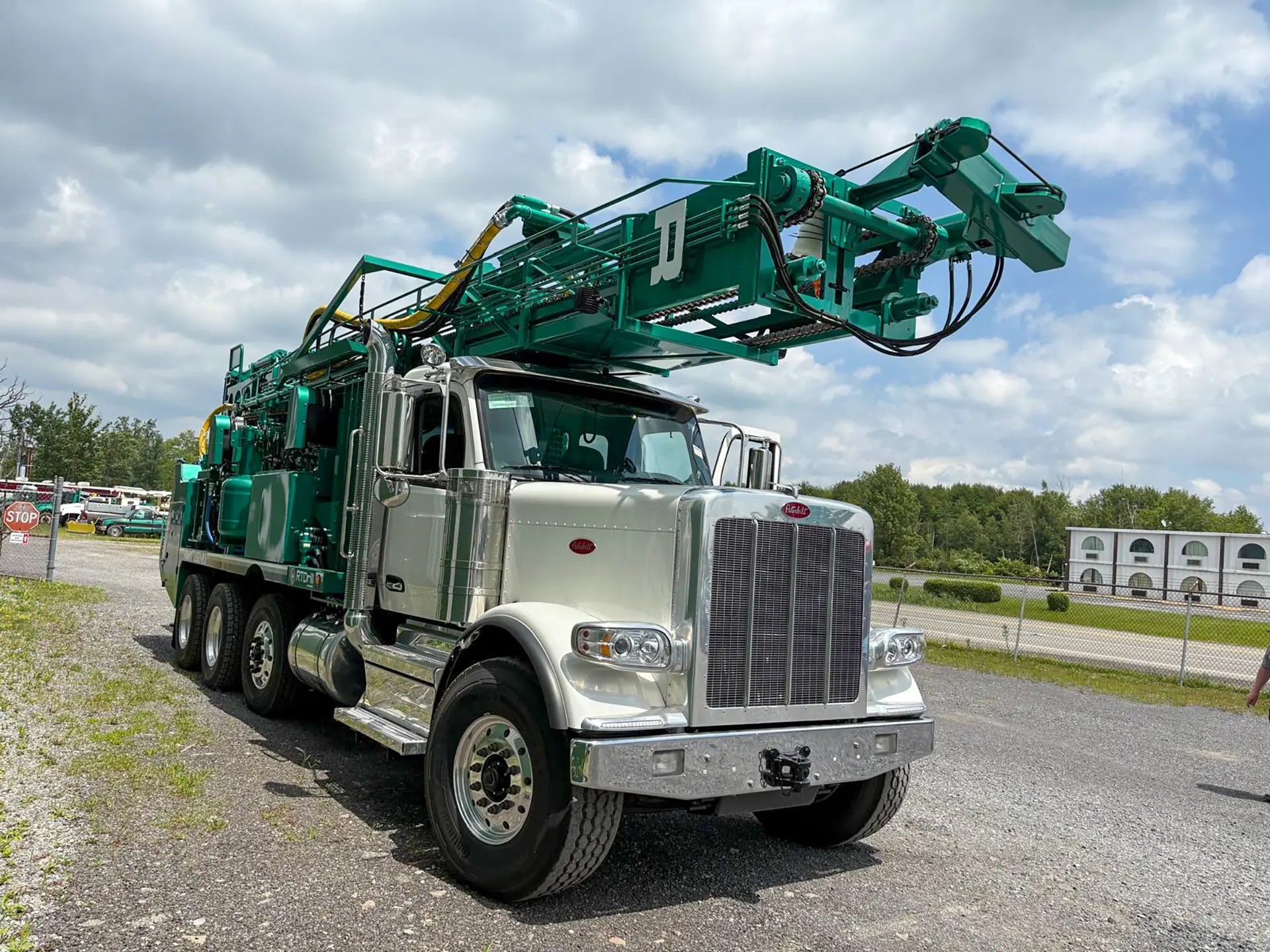

RTD69 Legend 5
RTD69 Legend 5
RTD69 Legend 5
RTD69 Legend 5
RTD69 Legend 5
RTD69 Legend 5
RTD69 Legend 5
RTD69 Legend 5
RTD69 Legend 5

RTD69 Legend 5

Waterwell

Powered by a 577 hp (430 kW) engine and 1,070 CFM (30.3 m³/min) of air, it delivers fast drilling for hole diameters up to 20 inches (508 mm). Its 43,980 lbf (195.6 kN) pullback makes it a trusted choice for deep water well projects.

Technical specifications
  1. Engine type : Caterpillar C13B
  2. Compressor model : Reichdrill or equivalent
  3. Dimensions : 36.6 x 26.9 x 40.9 ft | 10,98 x 8,2 x 12,46 m
  4. Rotary head type : Top head hydraulic drive
Get your spare parts

Technical specifications

Dimensions and weight
Length 36.6 ft
10,98 m
Width 26.9 ft
8,2 m
Height 40.9 ft
12,46 m
Weight 65,000 lbs
29 484 kg
Engine and compressor
Engine type Caterpillar C13B
Power 577 hp
430 kW
Compressor model Reichdrill or equivalent
Air volume 1,070 CFM
30,3 m3/min
Pulldown 35,000 lbf
155,7 kN
Pullback 43,980 lbf
195,6 kN
Speed 1,800 rpm
Pressure 375 PSI
25,9 bar
Truck model Peterbilt 589 Western Star 47X
Front axle rating 23,000 lbs
Rear axle rating 46,000 lbs
Leveling jacks 2 front - 2 rear
Drilling performance
Recommended hole size up to 20 in
up to 508 mm
Rotary head type Top head hydraulic drive
Maximum rotation speed 106 rpm
Torque 7,155 lbf
9 700 Nm
