Waterwell

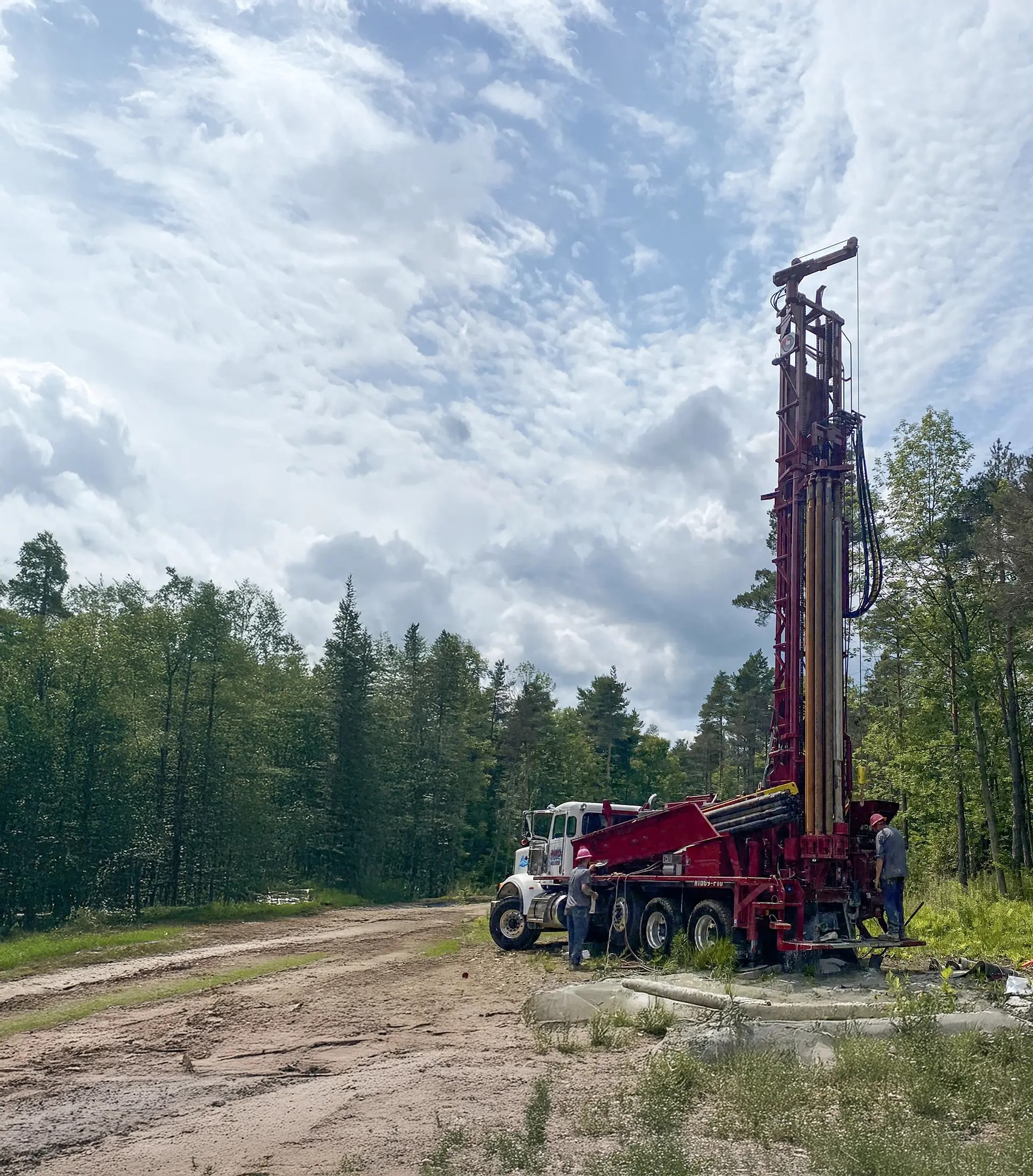

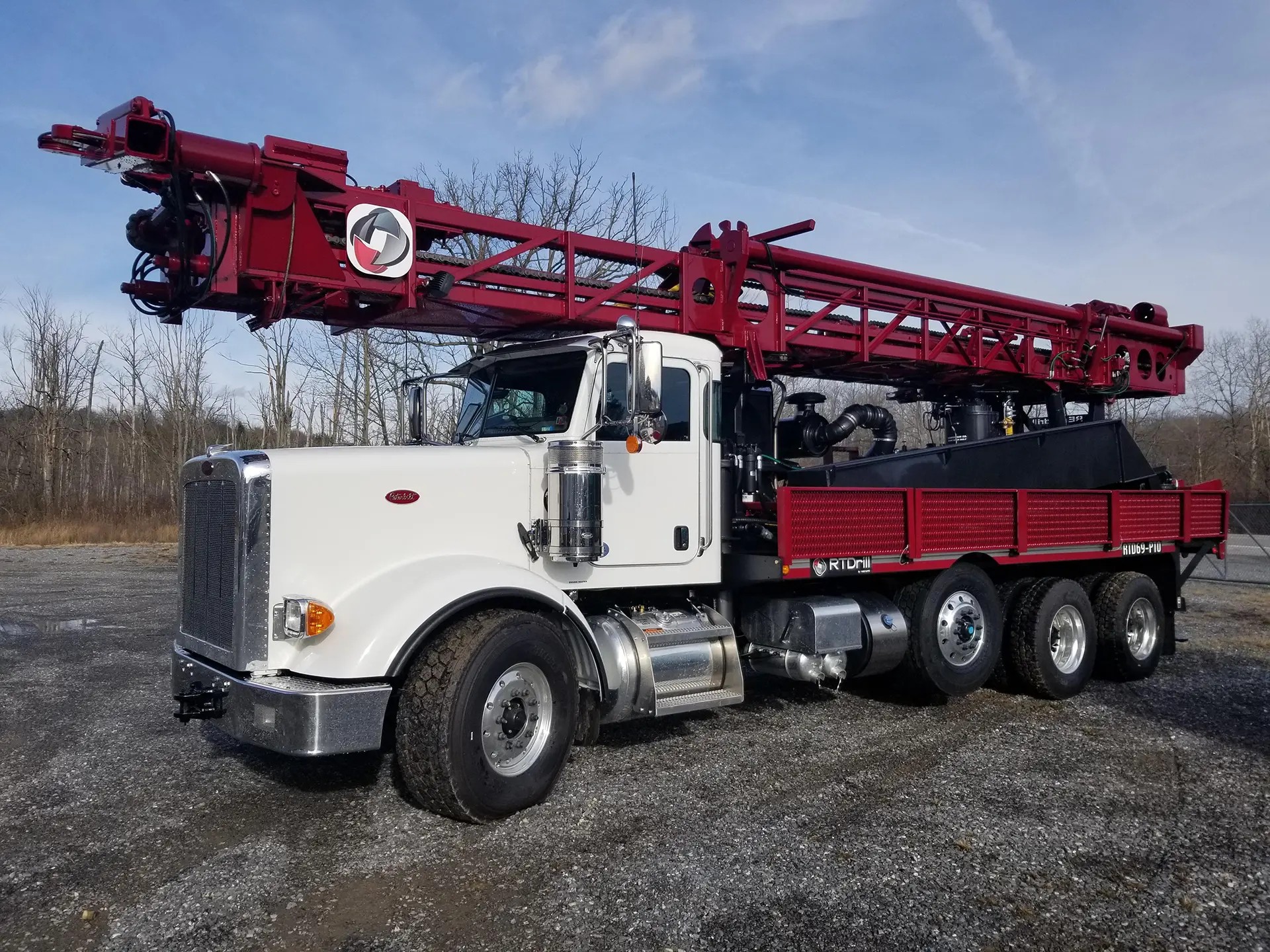

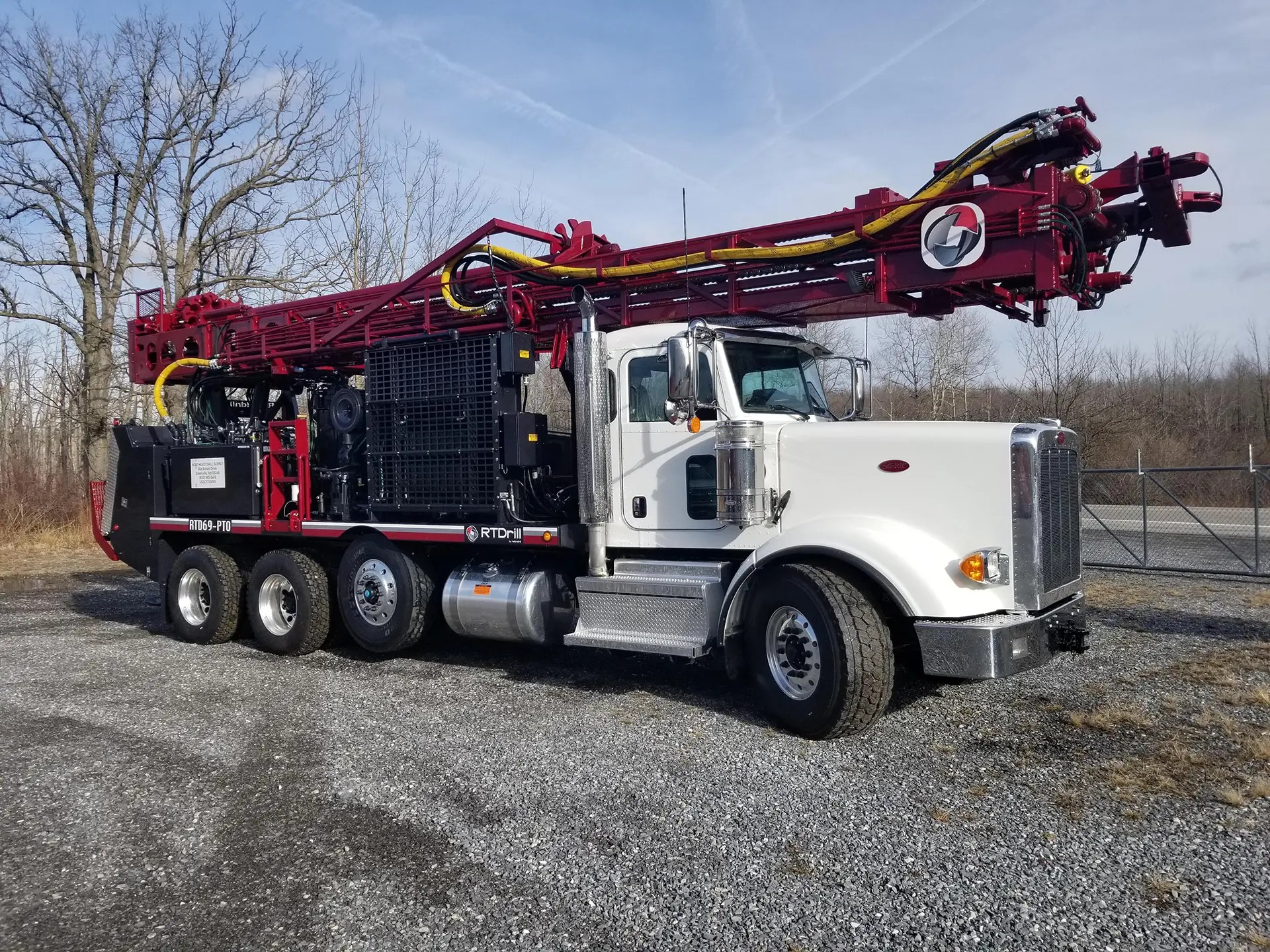

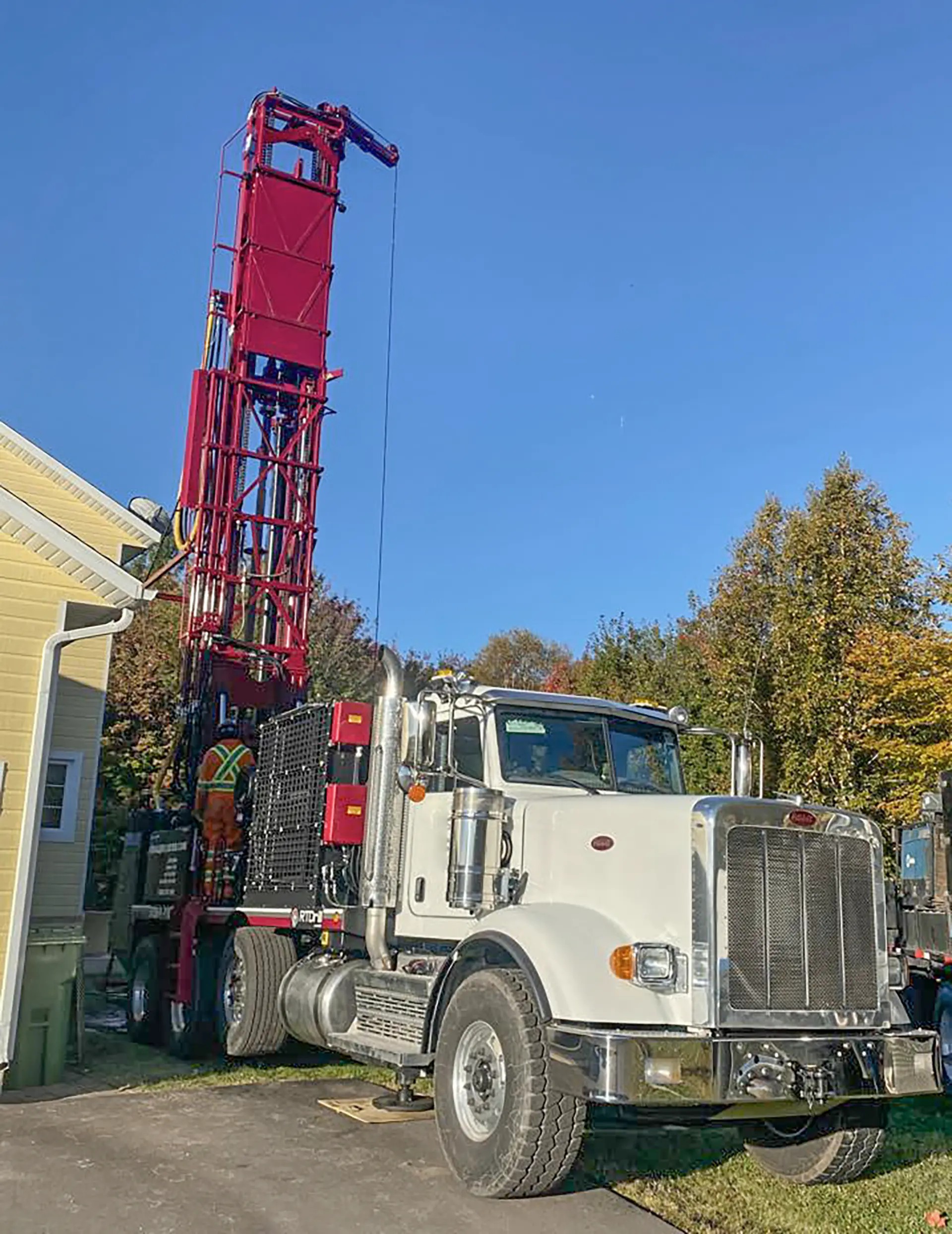

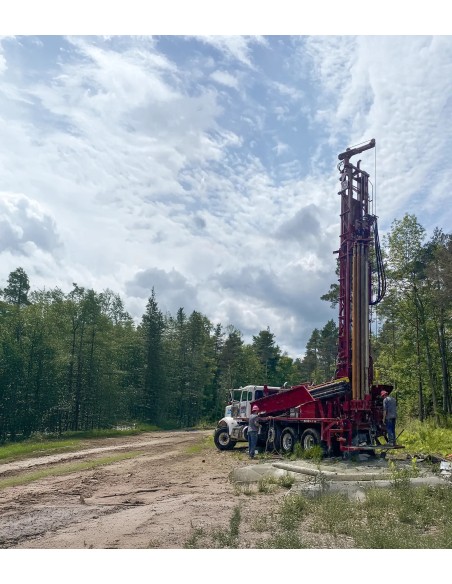

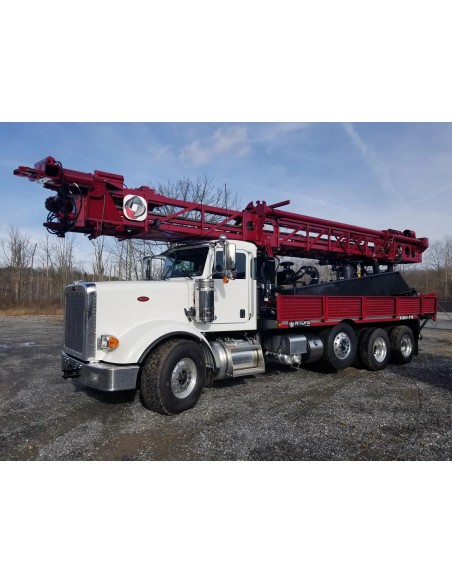

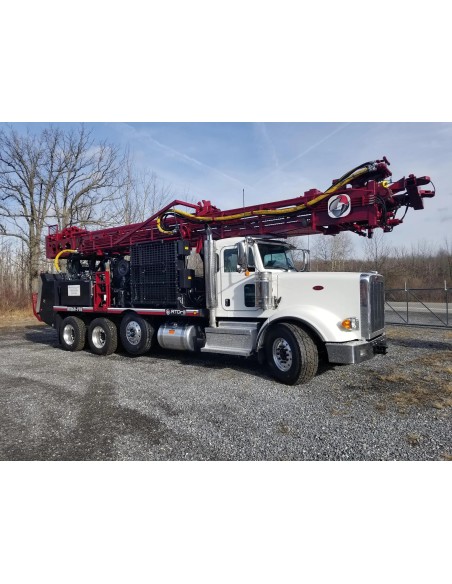

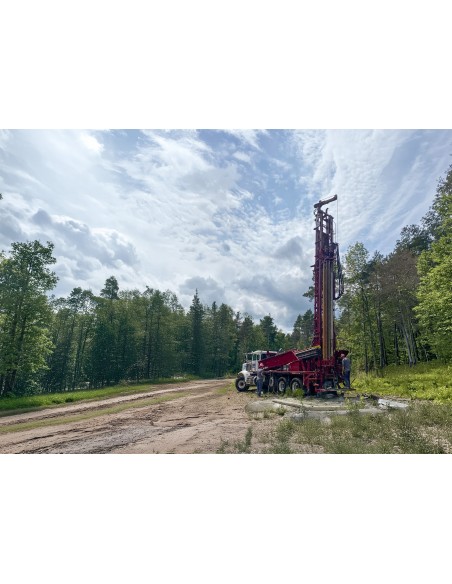

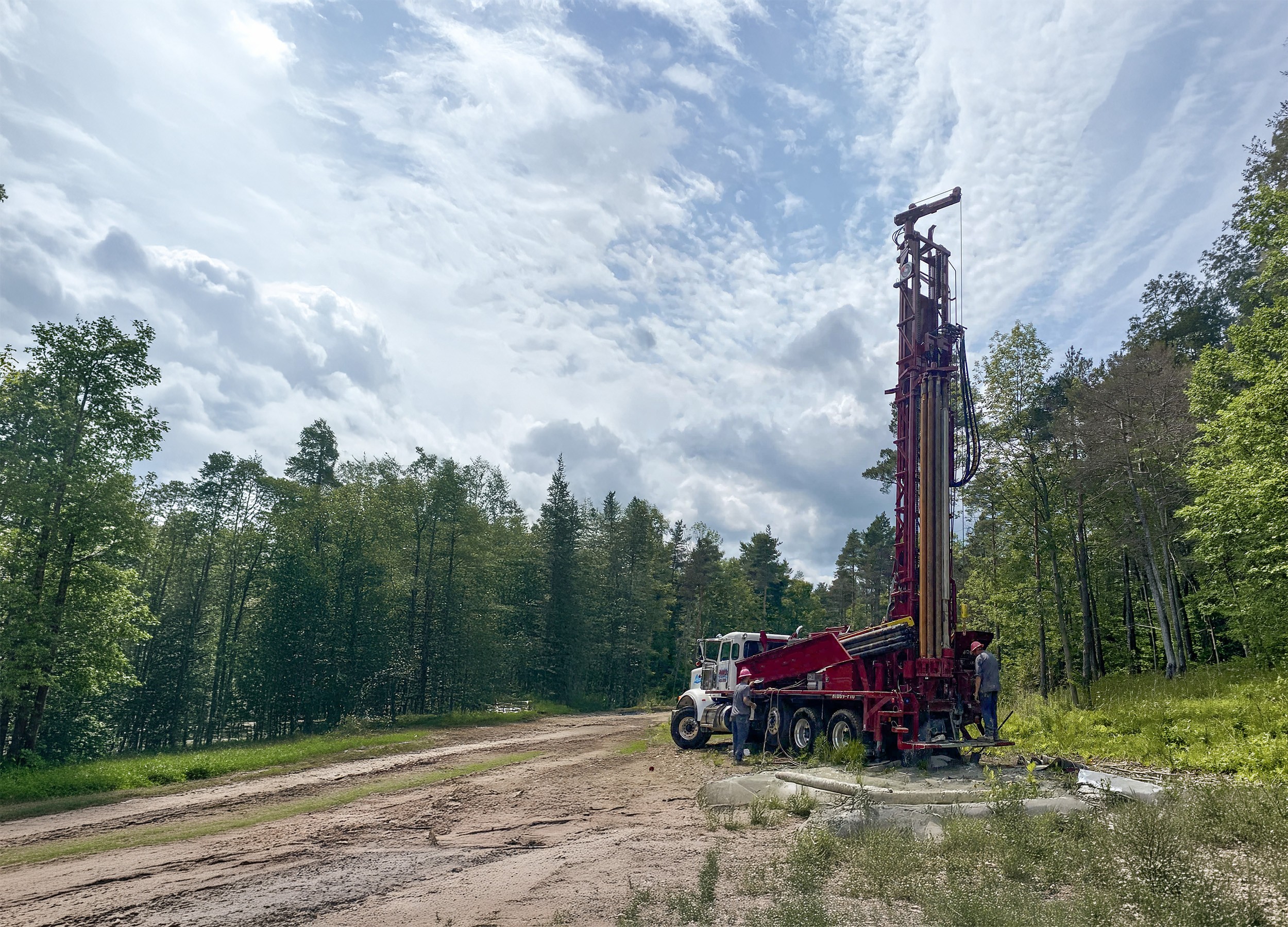

The RTD69 PTO is a premier solution for water well drilling, offering high torque and reliable power. Featuring a 605 hp (451 kW) engine and 1,070 CFM (30.3 m³/min) of air, it ensures fast drilling for holes up to 20 inches (508 mm). With a pullback of 43,980 lbf (195.6 kN), it is built for deep wells and demanding formations.

Technical specifications
  1. Engine type : Cummins X15
  2. Compressor model : Reichdrill or equivalent
  3. Dimensions : 36.6 x 8.2 x 40.9 ft | 10,98 x 2,5 x 12,46 m
  4. Rotary head type : Top head hydraulic drive
Get your spare parts

Technical specifications

Dimensions and weight
Width 8,2 ft
2,5 m
Height 40.9 ft
12,46 m
Weight 65,000 lbs
29 484 kg
Engine and compressor
Engine type Cummins X15
Power 605 hp
451 kW
Compressor model Reichdrill or equivalent
Air volume 1,070 CFM
30,3 m3/min
Pulldown 35,000 lbf
155,7 kN
Pullback 43,980 lbf
195,6 kN
Length 36.6 ft
10,98 m
Pressure 375 PSI
25,9 bar
Truck model Peterbilt 367 4 chassis
Power Take-Off OMSI PFT - PCVT - 3000
PTO ratio 1:1
Drilling performance
Recommended hole size up to 20 in
up to 508 mm
Rotary head type Top head hydraulic drive
Maximum rotation speed 106 rpm
Torque 7,155 lbf
9 700 Nm
